Hot Selling Building Materials Formwork Wood H20 Beam

Short Description:

H20 Timber Beam, also called H20 Wood beam, I Joist, I beam, Wood H beam, is widely used in formwork systems, construction systems parts, Falsework systems, timber structures and other bearing structures . Formwork H20 Timber Beam is the strongest and lightest formwork beam made of engineered spruce wood. 1. High dimensional stability, long service life2. Wide application in girder-based formwork system3. Customized length

Material: wooden

Length: 1.9-5.9m

Bearing capacity: 8~9.1KN/sqm

MOQ: 100PCS

Send email to us Whatsapp

Product Detail

Product Tags

Product Description

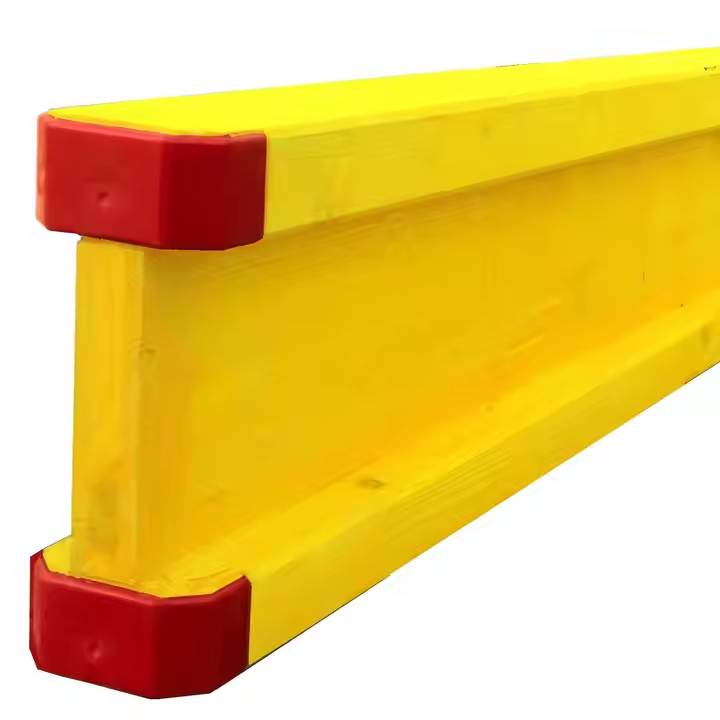

H20 Timber Beam Building Slab Concreting Construction
Formwork H20 Timber Beam, also called H20 Wood beam, I Joist, I beam, Wood H beam or Wood Girder, is widely used in formworksystems, construction systems parts, Falsework systems, timber structures and other bearing structures .
Formwork H20 Timber Beam is the strongest and lightest formwork beam made of engineered spruce wood. Our Formwork beam are produced in various standard lengths.

Product Specification

Product Name	H20 Beam / h 20 Wooden Beam Formwork for hydraulic automatic climbing formwork
Technical Specification	Flange: Radiate pine LVL from New Zealand Web: Poplar core plywood Glue: WBP glue Weight: around 5.0 kg/m Available length (m): 1.5, 1.9, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 etc. or customized
Features	* Flange is made from imported radiate pin LVL, Finger-jointed into the web* Web is made from poplar core plywood with Melamine WBP glue * Two ends of each beam can be sealed with protective caps to protect them from moisture, reduce damage and increase service life * Yellow water proof painting * Monitoring as per EN13377 standard
Packing	Standard exporting package( bottom is pallet, covered with plastic film, around is carton, strengthen by steel tape with 3*6
Size Available	length:3000-6000mm, width:70-300mm
Surface	yellow waterproof painting or as per request

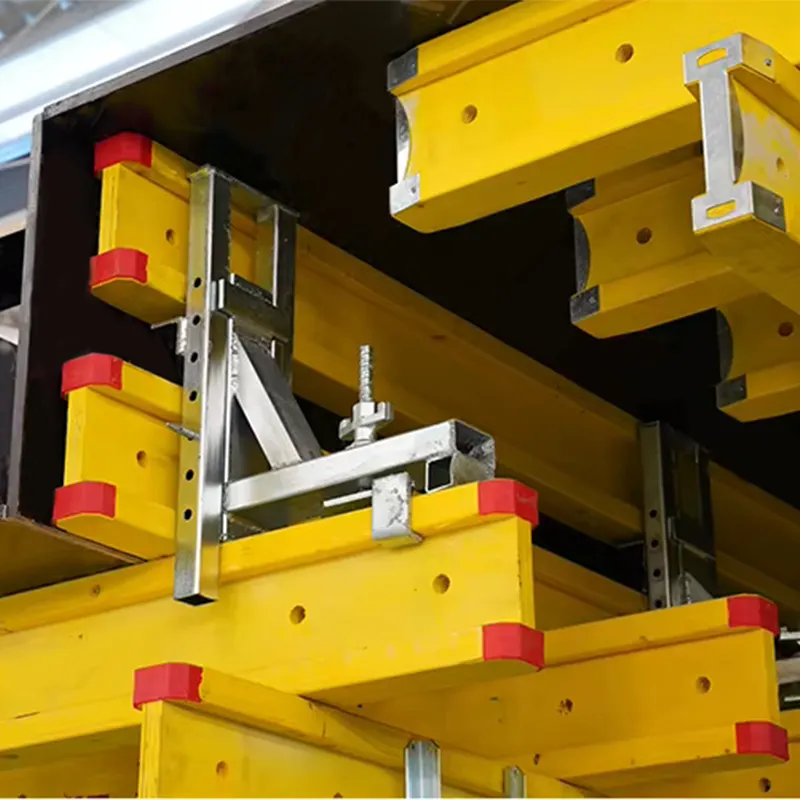

Applications

Timber beam is a very important part of formwork system and has been widely applied in construction. Not only used in wall / column / slab / core formwork in High rise commercial project, but also in public infra such as Bridge /Tunnel/ Airport/ Powerplant/ water treatment etc.

Product Display

Packing and loading

Packing Details : Packing strip, package box, steel pallet, or according to client's request
Delivery Details : Generally it is 5-30 days, it is according to quantity
Port : Tianjin

Company Profile

FAQ

1. who are we?
We are based in Tianjin,China,start from 2014,sell to Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Steel Props, Scaffoldings, Scaffolding Accessories, Formwork, Formwork Accessories;
4. why should you buy from us not from other suppliers?
High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
