HDGI / GI Hot Dipped Galvanized Steel coil

Short Description:

Galvanized (Zinc-coated ) coil in which a sheet of steel is immersed in a molten zinc bath so that the surface adheres to a sheet of zinc.


Product Detail

Product Tags

Product Description:

(Zinc-coated ) in which a sheet of steel is immersed in a molten zinc bath so that the surface adheres to a sheet of zinc.At present the main use of continuous zinc production process, that is, the rolled steel sheet continuous dip in the melting zinc plating bath made of galvanized steel sheet;Alloy galvanized steel sheet.This kind of steel plate is made by hot dip method, but after the slot, immediately heated to a temperature of about 500 ℃, it make the generation of zinc and iron alloy membrane.This galvanized coil has good coating tightness and weldability.

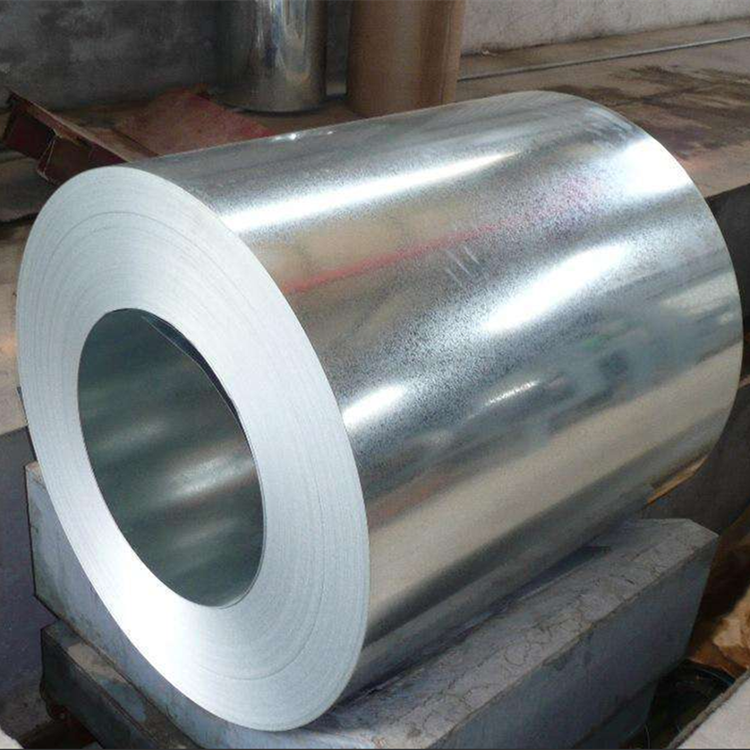

Galvanized Steel Coil
Galvanized Steel Coil

Product Specification:

Details of galvanized
Technique hot rolled/ cold rolled
Surface Treatment Powder Coated or Galvanized
Application roofing, wall construction, painting basis sheets and auto industry
Special Use High-strength Steel Plate
Length Per Customers' Requirement
Width 600mm-1250mm
Thickness 0.14-3.00 mm
Material Standard GB-T/2518-2008
Certificate ISO 9001:2008/SGS/BV
Spangle Big/Regular/Minimum/Zero
Hardness Soft; Full Hard(G550)
Zinc Coating 40-120 g/m2
Surface Chromated/Unoild
Color RAL Color
MOQ 25 Tons
Package 1,Water-Proof Paper 2, Plastic Paper 3, Protective Steel Sheet
Coil Weight 3-5 Tons

Product Process:

steel coil 3
steel coil 4
steel coil 5
steel coil 6

Packing& Loading:

steel coil 1
steel coil 2

Company Introduction :

Welcome to Tianjin Rainbow Steel. We manufacture steel products or steel structure for the , Transmission & Distribution  (Towers & Poles) , Construction, Industrial, Scaffolding and Greenhouse Construction. Tianjin Rainbow Steel Group was founded in 2000, Located in Tianjin City. After several years of development, Rainbow Steel has developed into an intergrated iron and steel enterprise of galvanized steel pipe, galvanized steel angle bar, galvanized profiles, steel structures, and we are also the biggest electrical transmission steel tower and pole factory in china. our group has our own galvanizing mill, So all the jobs can be galvanized from our own factory. Discover our vast metal product range including Steel Pipes, Iron Angles, Iron Beams, Perforated Steel Products, Welded Steel Structures, Steel Tower&Pole, Exciting projects, extensive industry expertise and high-quality service offering.

process
