Agricultural rain gun sprinkler center pivot irrigation system

Short Description:

Center pivot irrigation system: also known as circular irrigation machine, clockwise irrigation machine, center pivot irrigation machine, irrigation circle, etc.


Product Detail

Product Tags

Product Description:

center pivot irrigation system 18

Center pivot irrigation system: also known as circular irrigation machine, clockwise irrigation machine, center pivot irrigation machine, irrigation circle, etc.It is a large sprinkler which supports the pipe with sprinkler head on the bracket which can walk automatically and rotates around the central point with water supply system while spraying.



Feature:

1. A single machine can control 3000 mu of land, high degree of automation, simple operation, very low power consumption, low labor cost.
2. Suitable crops: alfalfa, corn, wheat, potato, sugar beet, cereal and other cash crops
3. Uniform irrigation, spraying uniformity coefficient can reach more than 85%, low investment cost, service life of 20 years.
4. Water-saving equipment, water-saving effect can be increased by 50%, and output value per mu can provide 30-50%.
center pivot irrigation system 4

Product Specification:

Main pipe size:
168mm,219mm
Wall thickness:
3mm
Cross-body length:
62 meters, 56 meters, 50 meters, 44 meters and other lengths to choose from
Crop static passing height:
2.9m (standard), 4.6m (increased)
Cantilever length:
24 m, 18 m, 12 m, 6 m and other lengths for choice

Product Display:

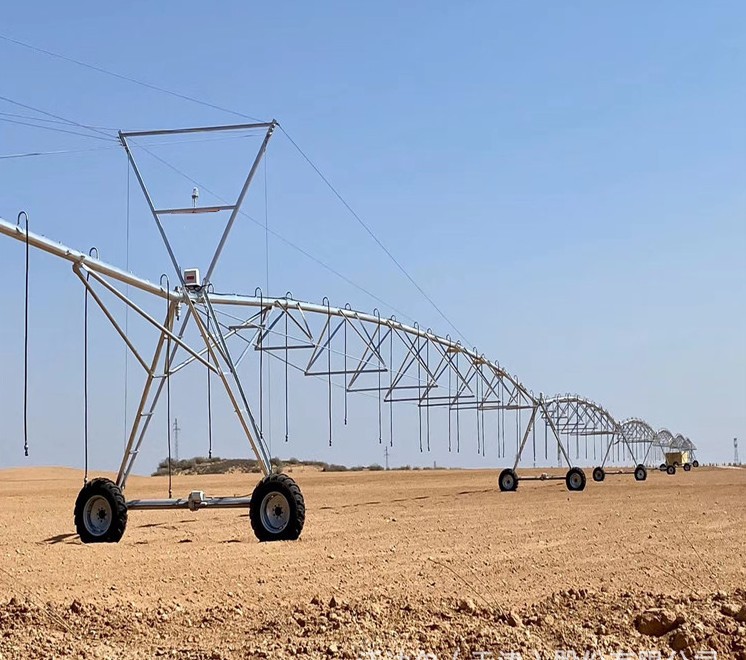

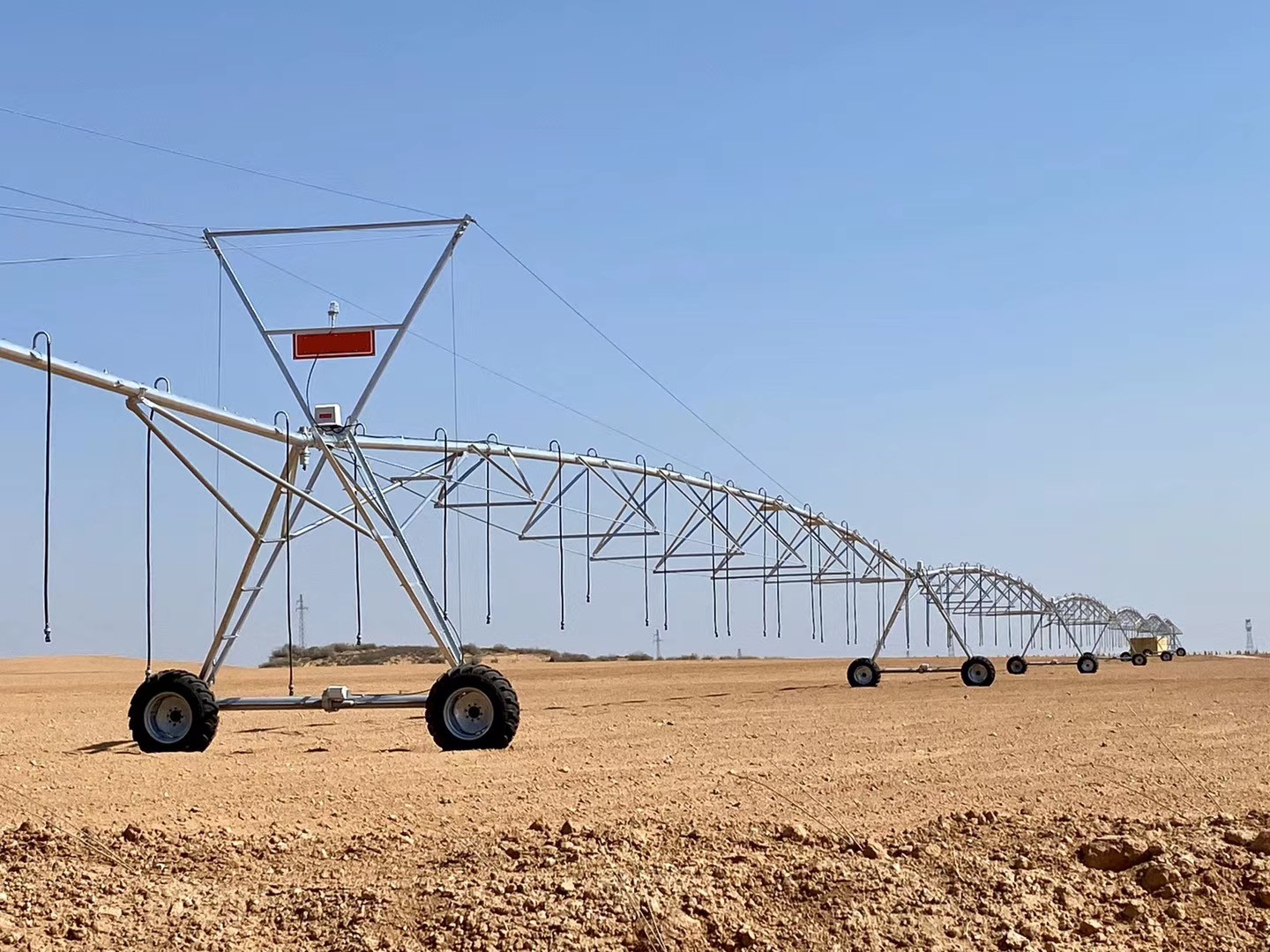

center pivot irrigation system 20
center pivot irrigation system 21
center pivot irrigation system 22
center pivot irrigation system 23
center pivot irrigation system 24

Product Applications:

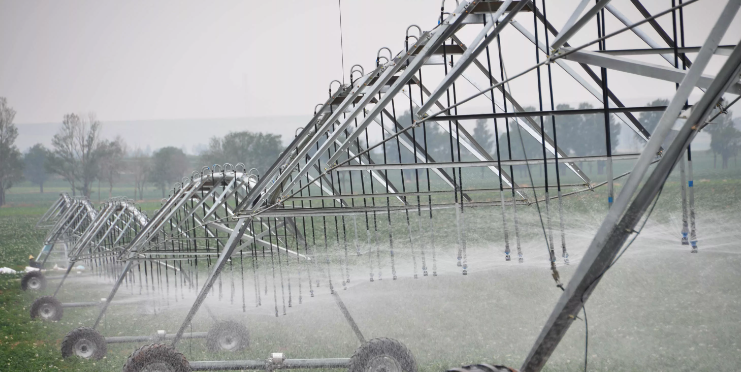

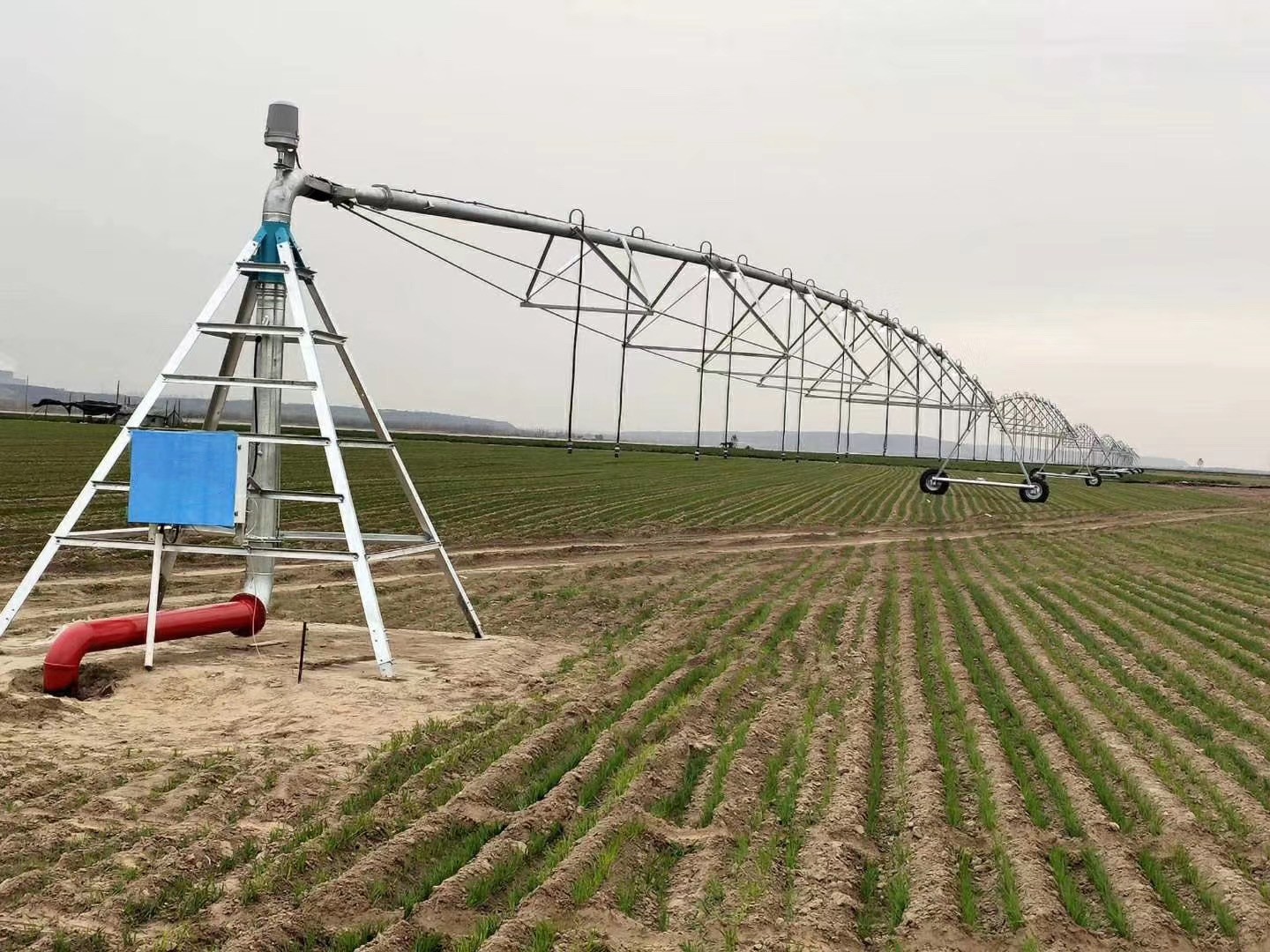

center pivot irrigation system 17
center pivot irrigation system 16

Packing& Loading:

center pivot irrigation system 15
center pivot irrigation system 14
