Galvanized highway guard rail highway barrier

Short Description:

The main purpose of a highway guardrail along the highway is to form a safety barrier to help protect a motorist who has drifted off the road.Utility poles, bridge piers and retaining walls are other obstacles. In these cases, striking a guardrail would be greatly preferable to striking the obsta...


  • FOB Price: US $500-800/ Ton
  • Min.Order Quantity: 20 Tons
  • Supply Ability: 20000 Tons per Month
  • Product Detail

    Product Tags

    The main purpose of a highway guardrail along the highway is to form a safety barrier to help protect a motorist who has drifted off the road.Utility poles, bridge piers and retaining walls are other obstacles. In these cases, striking a guardrail would be greatly preferable to striking the obstacles, so guardrails are usually installed.They lessen the severity of a potential crash and make the roads safer.The guardrail can act in a myriad of ways from deflecting a vehicle back onto the road, slowing it down or stopping it, or in some cases just slowing it down enough and allowing it to proceed past the guardrail.

     Product Specification  :

    Galvanized highway guard rail price highway barrier
    Profile
    W beam , Thrie beam
    L:3200/3810/4000/4300/4320 × W:306/310/312/380mm
    Height : 80/82/83/85 × Thickness :2.75/3/4mm.
    Available in different sizes, customized
    Guardrails Post-C channel 150x100x5mm, Length 1830mm
    Spacer-C Channel 150x100x5mm, Length 350mm (or other customized C, U and Sigma types etc )
    Back Up Plate Beam 2.7mm THK, Length 300mm
    Rectangular Washer 76x45x4.5mm
    Other Relevant Parts Fasteners, Bolts&Nuts,Terminal,Reflectors
    Materail Q235B, Q345B, ASTM A36
    Surfacce treatment Hot dipped galvanized or plastic sprayed coating
    Zinc Coating 550g-1100 g/m2 double sided
    Application highway, freeway
    Applicabele Standards JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail – China), AASHTO M180(Corrugated Sheet Steel Beams For Highway Guardrail – USA), RAL RG620 (German) or any other International Standards
    Base Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994)
    The Thickness of Galvanized (Double Sides) 550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request
    Features Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc.
    MOQ one 20 feet container
    Price Terms FOB,CFR,CIF
    Payment Terms T/T,L/C at sight
    Other special specification as per customer’s requirement or drawings

     Application & Material

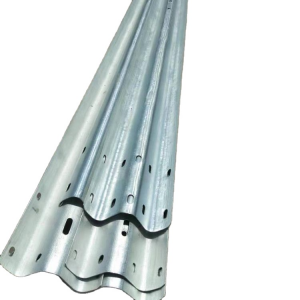

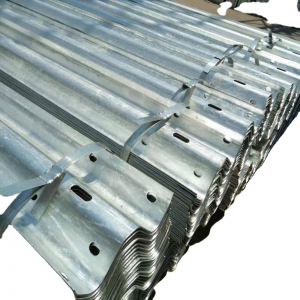

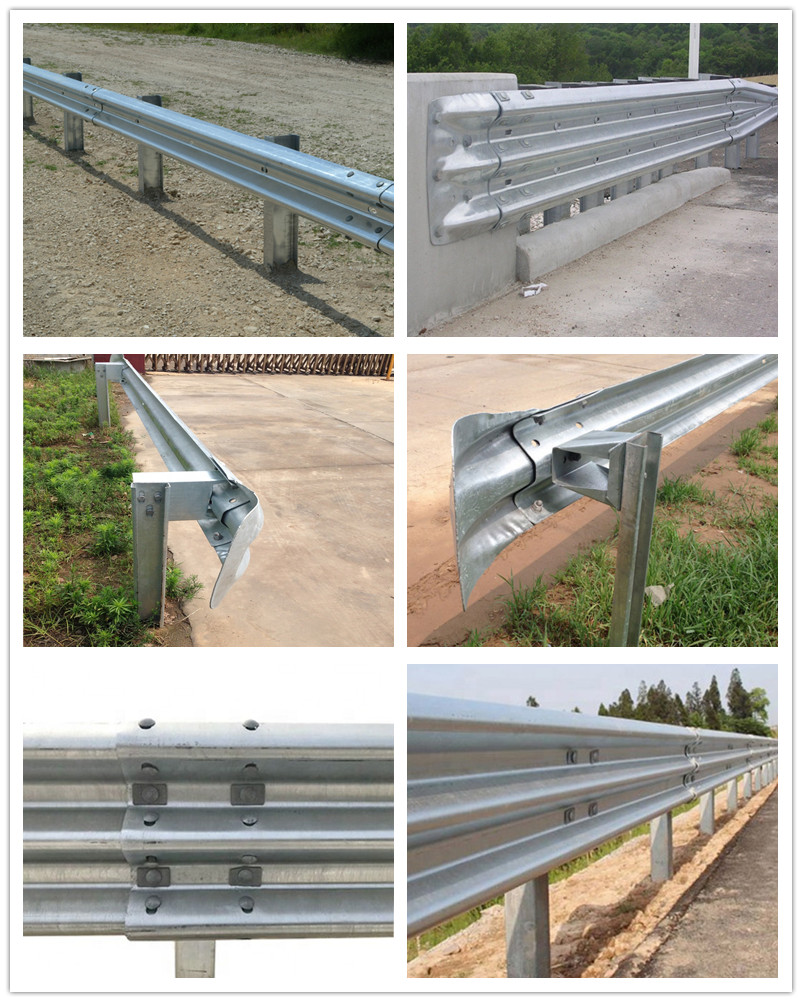

    Road barier application Road barier materials Road barrier Material





























































































































































    Road barriers are designed to prevent or deter access to dangerous or off-limits areas while allowing light and visibility in a greater way than a fence. It prevents vehicles from falling off cliffs or running off the road or on the opposite side. Road barriers can also be used as temporary fences to channelize traffic in the desired direction.
