Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses

Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses Featured Image
  • Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses
  • Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses
  • Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses
  • Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses
  • Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses
  • Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses
  • Greenhouse Pipe, Galvanized Steel Pipe for Greenhouses

Short Description:

Many commercial greenhouses or hothouses are high tech production facilities for vegetables or flowers. The glass greenhouses are filled with equipment including screening installaions, heating, cooling, lighting, and may be controlled by a computer to optimize conditions for plant growth.


Whatsapp

Product Detail

Product Tags

Product Description:

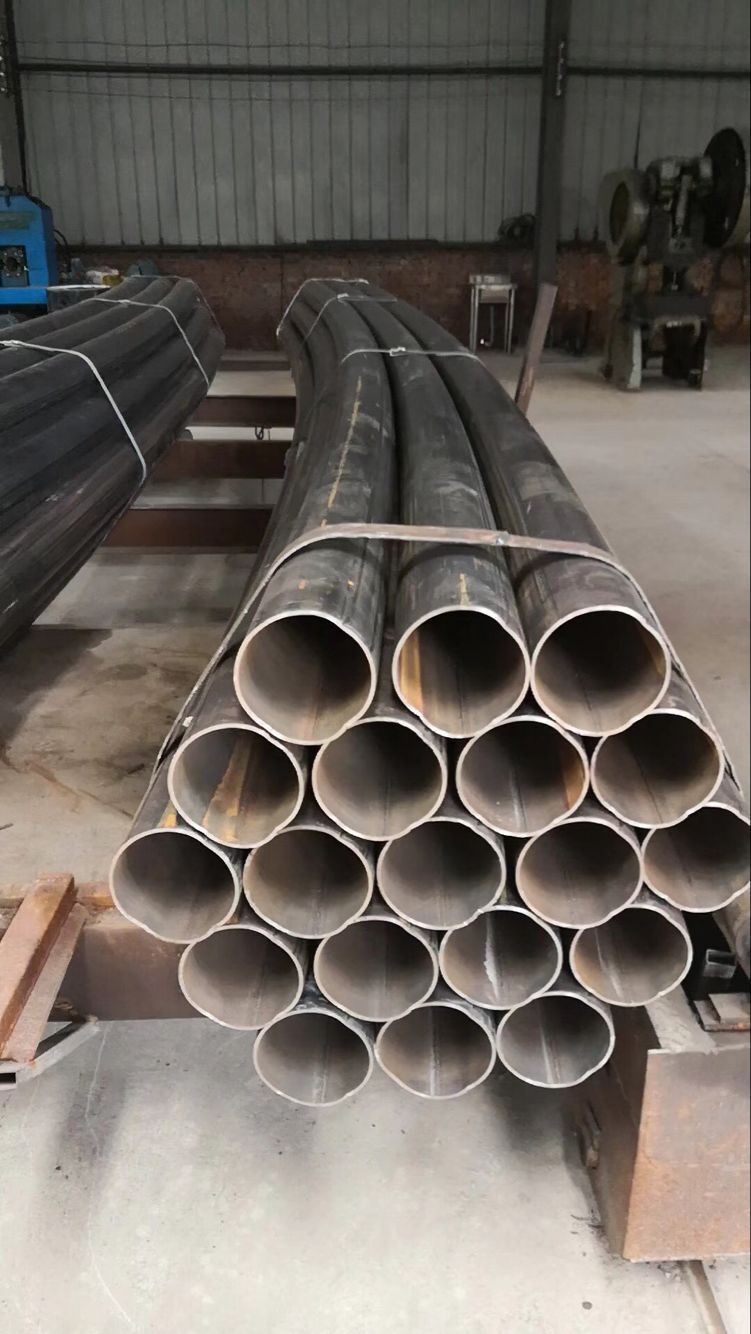

greenhouse constrction3

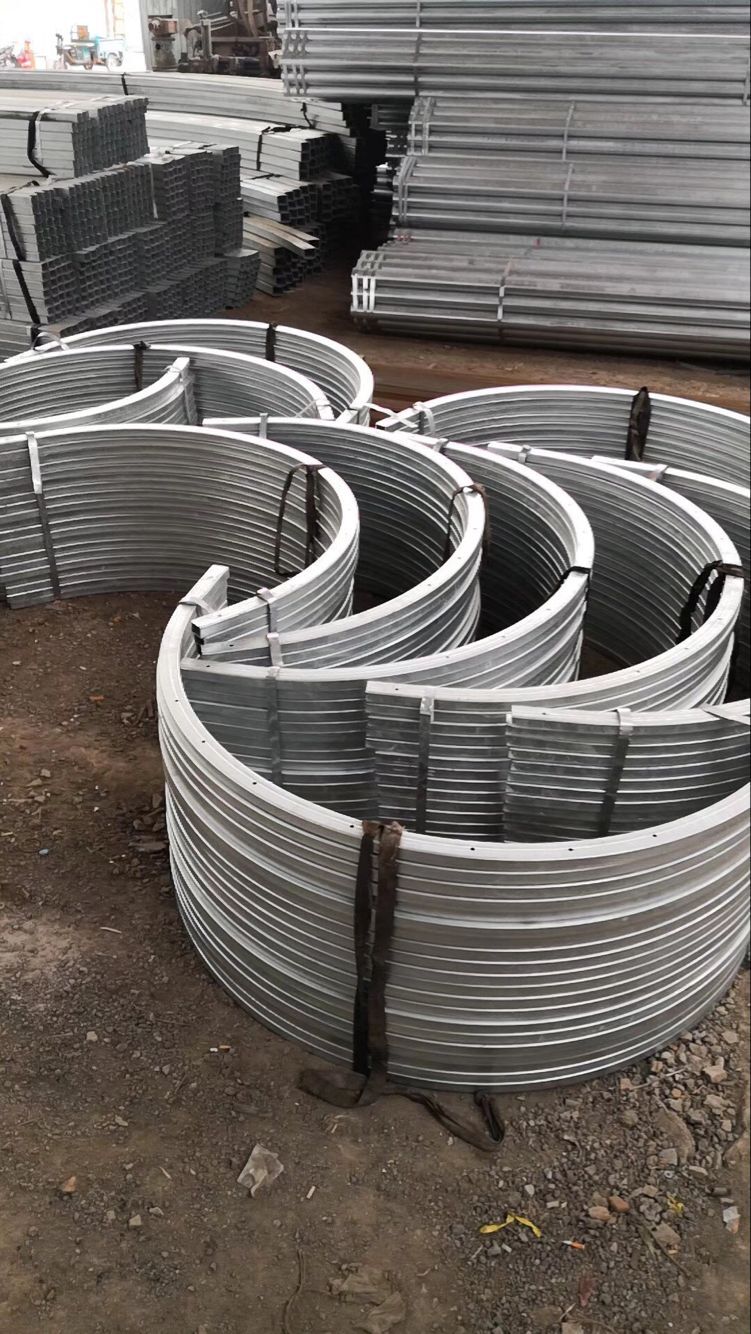

greenhouse constrction4
greenhouse constrction2

 Commen Material

1.Square tube: generally used on the vertical column of intelligent greenhouse, this general specification is 70*50,50*100, 100*100, 120*120, 150*150 or other larger square tube, smaller square tube such as 50*50 for greenhouse horizontal tie bar.

2.Circular tube: it is used to build the . It is a secondary load-bearing structure, and the force is transmitted to the main stress structure after being stressed. It is the framework of the greenhouse.

3.Elliptic tube: elliptic tube is a new product introduced in recent years. Compared with circular tube, elliptic tube has a particularly good pressure resistance. However, because the existing elliptic tube is made of galvanized tape, its anti-corrosion performance is inferior to that of circular tube.

4.Profile Steel: it is used on the top of intelligent greenhouse to form a steel frame. It has the advantage of low cost and poor stability compared with square pipe.It is mainly used in areas with low stress and corrosion protection requirements.



Product Specification:

The company has various types of steel pipe to meet your various needs

Norminal

size

Wall Thickness(mm)

Outside Diameter

Weight(Blackpipe)

Plain End kg/m

Max.

Min

mm

in

A

B

C

A

B

C

A

B

C

A

B

C

15

1/2’

2.0

2.6

3.2

21.4

21.7

21.7

21.0

21.1

21.1

0.947

1.21

1.44

20

3/4’

2.3

2.6

3.2

26.9

27.2

27.2

26.4

26.6

26.6

1.38

1.56

1.87

25

1’

2.6

3.2

4.0

33.8

34.2

34.2

33.2

33.4

33.4

1.98

2.41

2.94

32

1’/4’

2.6

3.2

4.0

42.5

42.9

42.9

41.9

42.1

42.1

2.54

3.1

3.8

40

1’/2’

2.9

3.2

4.0

48.4

48.8

48.8

47.8

48.0

48.0

3.23

3.57

4.38

50

2’

2.9

3.6

4.5

60.2

60.8

60.8

59.6

59.8

59.8

4.08

5.03

6.19

65

2’/2’

3.2

3.6

4.5

76.0

76.6

76.6

75.2

75.4

75.4

5.71

6.43

7.93

80

3’

3.2

4.0

5.0

88.7

89.5

89.5

87.9

88.1

88.1

6.72

8.37

10.3

100

4’

3.6

4.5

5.4

113.9

114.9

114.9

113.0

113.3

113.3

9.75

12.1

14.5

125

5’

-

5.0

5.4

-

140.6

140.6

-

138.7

138.7

-

16.6

17.9

150

6’

-

5.0

5.4

-

166.1

166.1

-

164.1

164.1

-

19.7

21.3
specification Round steel pipe ------------Wall Thickness(mm):2.0--5.4
Length 5.8m—12m or according to your requirement
Standard

ASTM A53,BS1387 GB/T3091,GB/T13793,DIN2444,JIS3466
Material Q195,Q215,Q235,Q345,A53(A/B)Q195= Grade B,SS330,SPHC,S185

Q215= Grade C,CS Type B,SS330,SPHC

Q235= GRADE D,SS400,S235JR,S235JO,S235J2

Q345= SS500,ST52
Ends Plain ends, Beveled ends, Socket/coupling and Threading, Plastic caps and so on
Packing Water-proof plastic cloth, Woven bags, PVC package, Steel strips and so on
Remarks 1) Payment terms: T/T/L/C2) Trade terms: FOB/CIF/CFR

3) Delivery time: According to the order quantity(at one lot)

4) Loading port: Tianjin

Advantages:

*Easy to dismantle or assemble for lightweight and sturdy skelton.
*Temperature rises quickly by long exposure to light.
*Large span , convenient operation space and high utilization rate.High space utilazatoin with long span and easy internal operation.
*All steel tube skeleton, long-life span. Longlife span can be acheieved with all steel constructions.
*Steel pipes are resistant to strong wind and snow.
*Compound insulation quilt achieves good insulation effect.
*Save materials, low cost, wide range of uses.easy,economy and lowcost have been used widely.



Product Applications:

A more scientific definition is "a covered structure that protects the plants from extensive external climate con0ditions and diseases, creates optimal growth microenvironment, and offers a flexible solution for sustainableand efficient year-round cultivation." A modern greenhouse operates as a system, therefore it is also referred to as controlled environment agriculture (CEA), controlled environment plant production system (CEPPS), or phytomation system.

Many commercial greenhouses or hothouses are high tech production facilities for vegetables or flowers. The glass greenhouses are filled with equipment including screening installaions, heating, cooling, lighting, and may be controlled by a computer to optimize conditions for plant growth. Different techniques are then used to evaluate optimality-degrees and comfort ratio of greenhouse micro-climate (i.e., air temperature, relative humidity and vapor pressure deficit) in order to reduce production risk prior to cultivation of a specific crop.

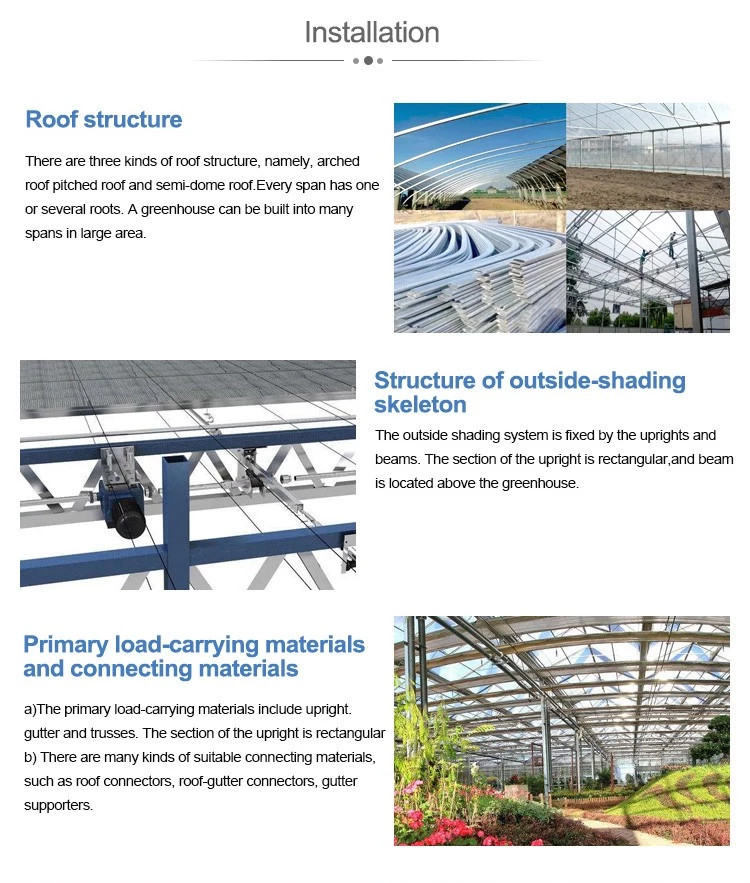

9. Installation



greenhouse 1
greenhouse 2
greenhouse 3

Company Advantages:

tube

We have produced and designed these items with years of experiences.
We have advanced facilitied for production, most of the products are produced by automatic machine.
We have many certificates which can assure the quality of our products.
We have many years of export experiences, our?professional sales team can offer customized services.
We have strong engineering team that can give best solution for your projects.
