Angle Bar (Lintel) Cross Arm 75*75*8*1700mm

Short Description:

Angle steel is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding, various building structures and engineering structures, such as building beams, bridges, power transmission towers, lifting and transporting machinery, ships, industrial furnaces, reaction towers, container racks, and Warehouse etc.


Product Detail

Product Tags

Product Description:

Specification: ?20*20–250*250
Thickness: 2MM-20MM
length: 6M 9M 12M(cutting to meet your requirement)
Material: carbon steel
Surface treatment: Black and Galvanized
Grade: Q195,Q235,Q345(Chinese standard)
Zinc Thickness: 35~85 micron
Process for reference: Punching
steel angle 15

Material:Q235 Q345 Q420 (low carbon steel ) Chemical composition

Wall Thickness :3-20mm

Technology :hot rolled

Sizes :20*20–250*250

Length :1-12m

Tolerance Wall thickness tolerance :+/-0.02mm Length tolerance :+/-10mm

Package 1.In Bundle 2.Plastic Outside In Bundles 3.In Bulk 4.As Customer’s Request

Delivery Time :Within 20 days ,ASAP.According to the total quantity

Product Specification:

steel angle 16

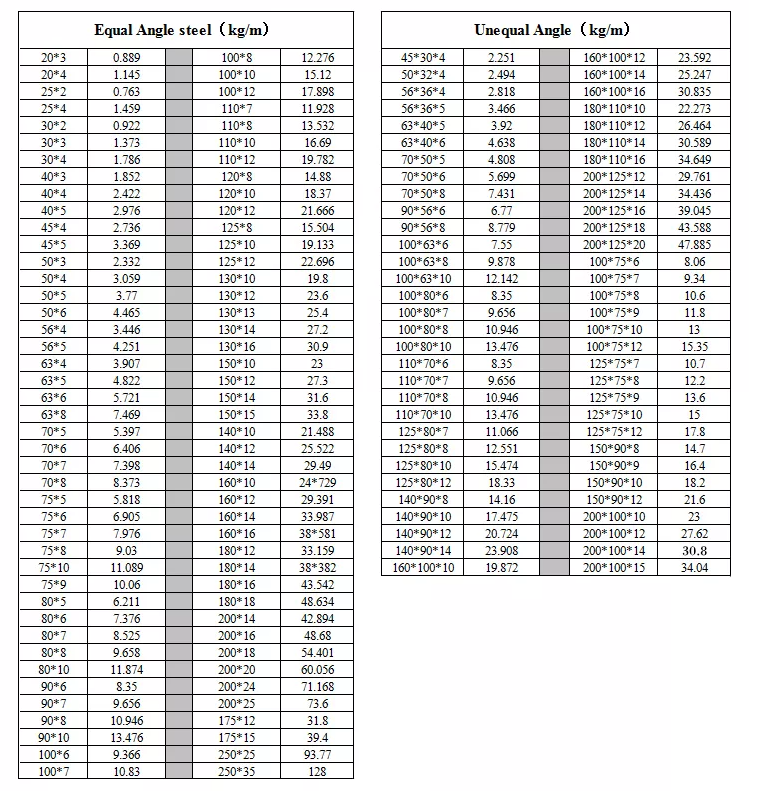

angle specification

Product Display:

steel angle 13
steel angle 14

1. Low treatment cost: The cost of hot dip galvanizing is lower than that of other paint coatings.

2. Durable: Hot-dip  has the characteristics of surface luster, uniform zinc layer, no leakage, no drip-slip, strong adhesion and strong corrosion resistance. In suburban environment, the standard thickness of hot-dip galvanized rust-proof can be maintained for more than 50 years without repair; in urban or offshore areas, the standard thickness of hot-dip galvanized rust-proof layer can be maintained for 20 years. It doesn’t need to be repaired.

3. Good reliability: The galvanized layer is metallurgical bond with the steel and becomes a part of the steel surface, so the durability of the coating is more reliable.

4. The coating has strong toughness: the galvanized layer forms a special metallurgical structure, which can withstand mechanical damage during transportation and use.

5. Comprehensive protection: Every part of the plated part can be galvanized, even in the depression, sharp corner and hidden place can be fully protected;

6. Time-saving and labor-saving: galvanizing process is faster than other coating construction methods, and can avoid the time required for painting on the site after installation.

Inspection:

angle6
angle5
We will use the most precise instrument to test the inner diameter and outer diameter of the hole, measure the wall thickness and the thickness of the zinc layer, and the standard rate is 100%

Packing& Loading:

steel angle 6
steel angle 5

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
