Square pipe for Solar Tracking System

Short Description:

Different solar trackers are designed with different spindle steel tubes, usually in square and circular forms. As an important part of trackers, the square or circular spindle tube require high straightness and distortion. We strictly control the dimension accuracy and surface flatness of hot rolles coils from the material link, and then cut and twist the coils twice after the production of steel tubes is completed. Straightening to ensure that our products fully meet the requirements of the...


  • FOB Price: US $500-800/ Ton
  • Min.Order Quantity: 20 Tons
  • Supply Ability: 20000 Tons per Month
  • Product Detail

    Product Tags

    Different solar trackers are designed with different spindle steel tubes, usually in square and circular forms. As an important part of trackers, the square or circular spindle tube require high straightness and distortion. We strictly control the dimension accuracy and surface flatness of hot rolles coils from the material link, and then cut and twist the coils twice after the production of steel tubes is completed. Straightening to ensure that our products fully meet the requirements of the drawings.

    Pipe material is usually Q355 or S355. According to customer’s requirements, hot dip galvanizing or pre-galvanizing can be selected.

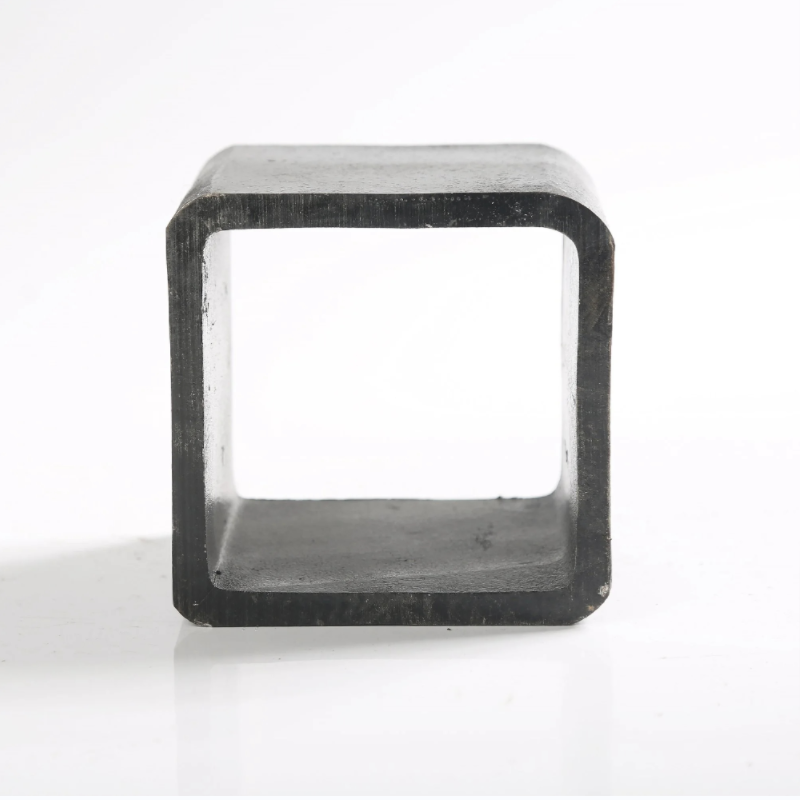

    Torque Square Tube

    Material: Q355,S355

    Standard: GB/T6728, ASTM A500 Gr.B

    Surface: Hot dip galvanized according to ASTM A123, BS4687, GB/T13912, Pre galvanized according to ASTM A653M G90

    Specification: 80*80*3MM, 100*100*4MM, 110*110*4MM, 150*150*5MM

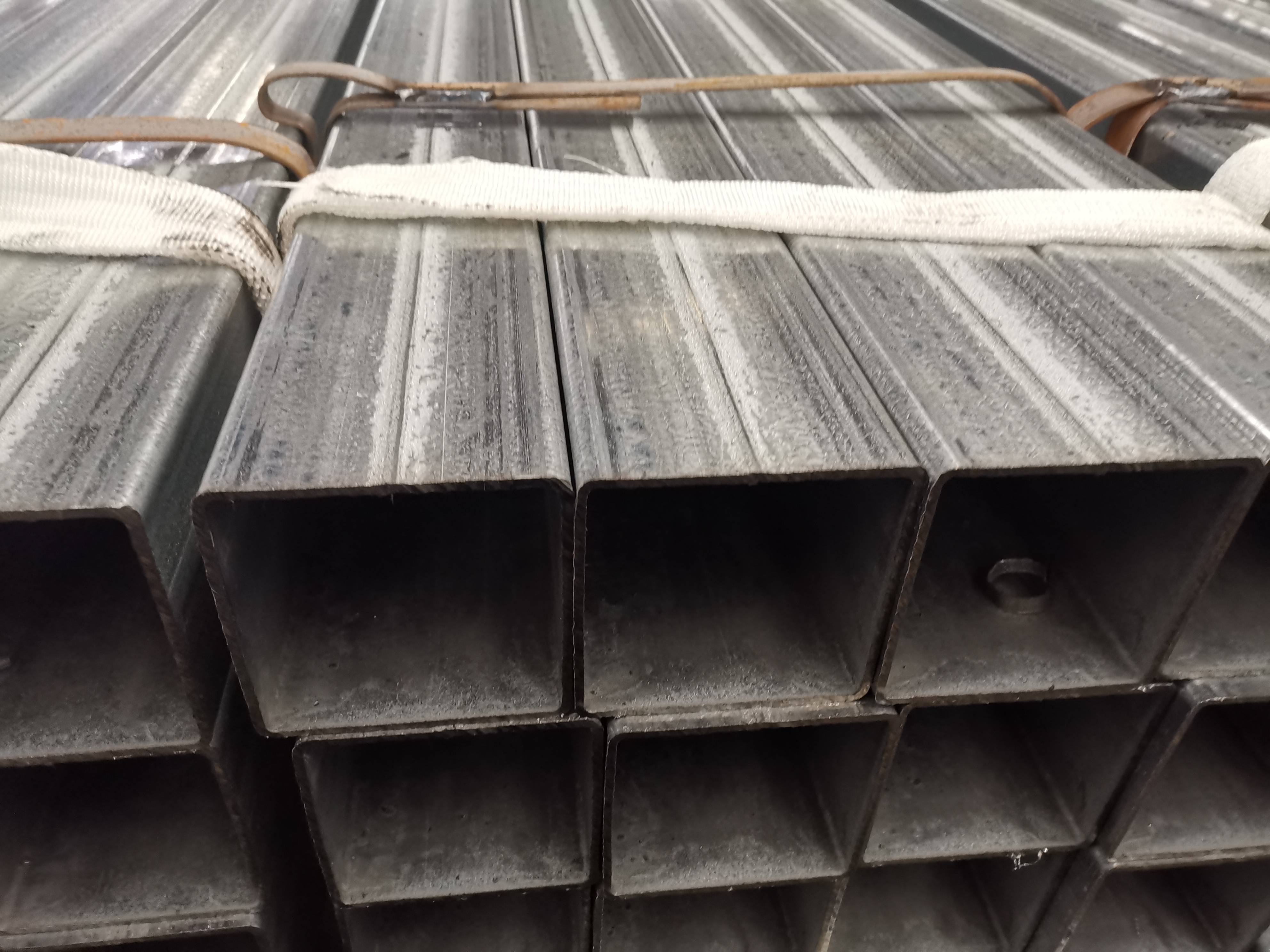

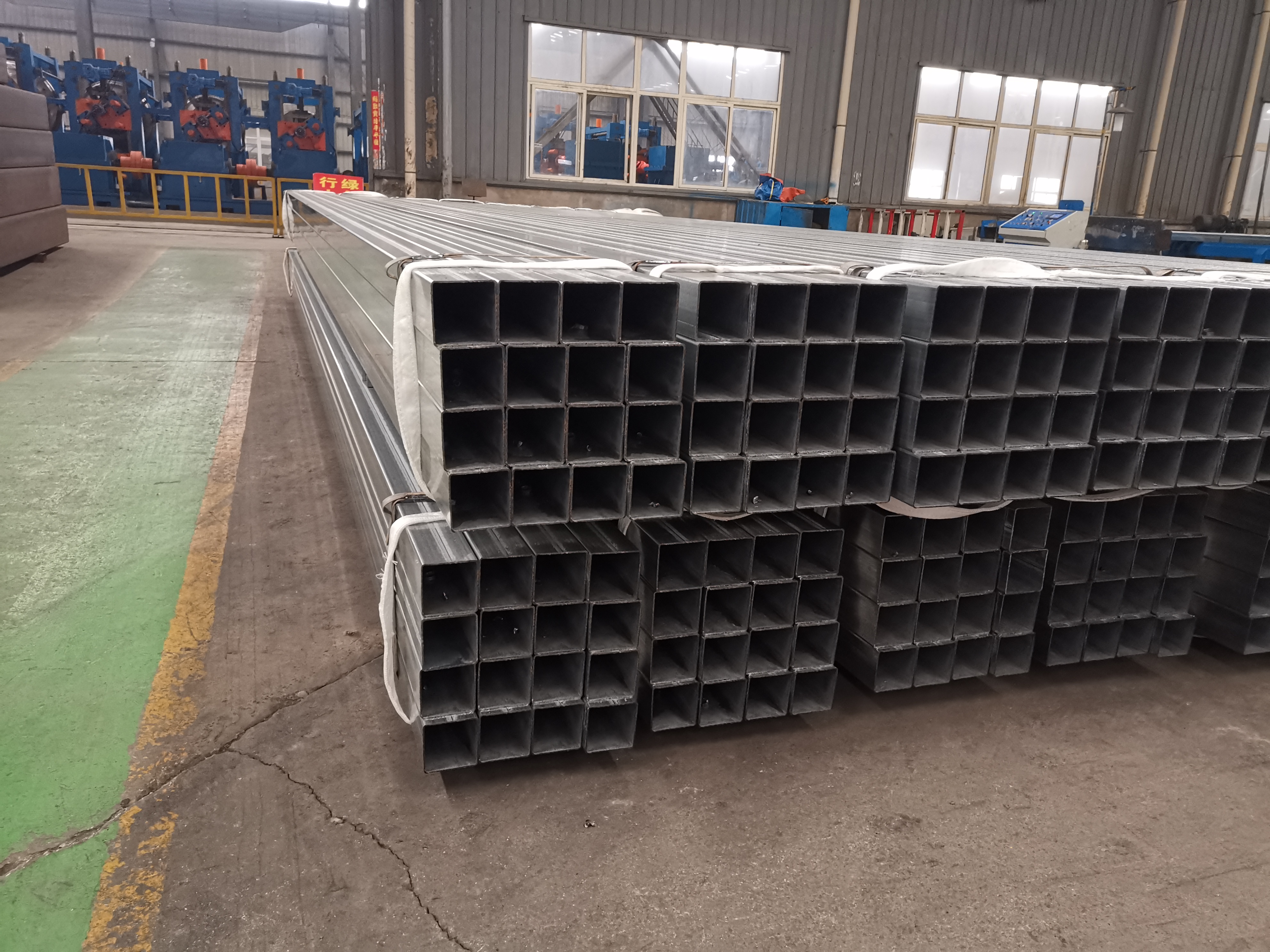

    Pcking: bundle packing or steel pallet packing, suitable for long ditance ocean transportation

    Characters: Our raw material for foundation piles is hot rolled coil from China first -class iron and steel company. Perfect Quality Management System which can track the heat number completely. Our average thickness of hot galvanied znc layer reaches 80 microns, we provide cuatomized packaging and overall packing plan for customers, greatly improving the safety of goods and unloading speed.

    Characteristic tolerance
    Concavo convex degree Less than 0.6% of the side length and a minimum of 0.4mm
    Twist degree =2+Total Length (mm)*0.5/1000
    Right angle 90°±0.5°
    Straightness Less than 0.2% of the total length and less than 2mm per meter
    Length tolerance L(total length)+2mm

    NT PIPE QQ图片20200229112738 QQ图片20200417092838 torque 4

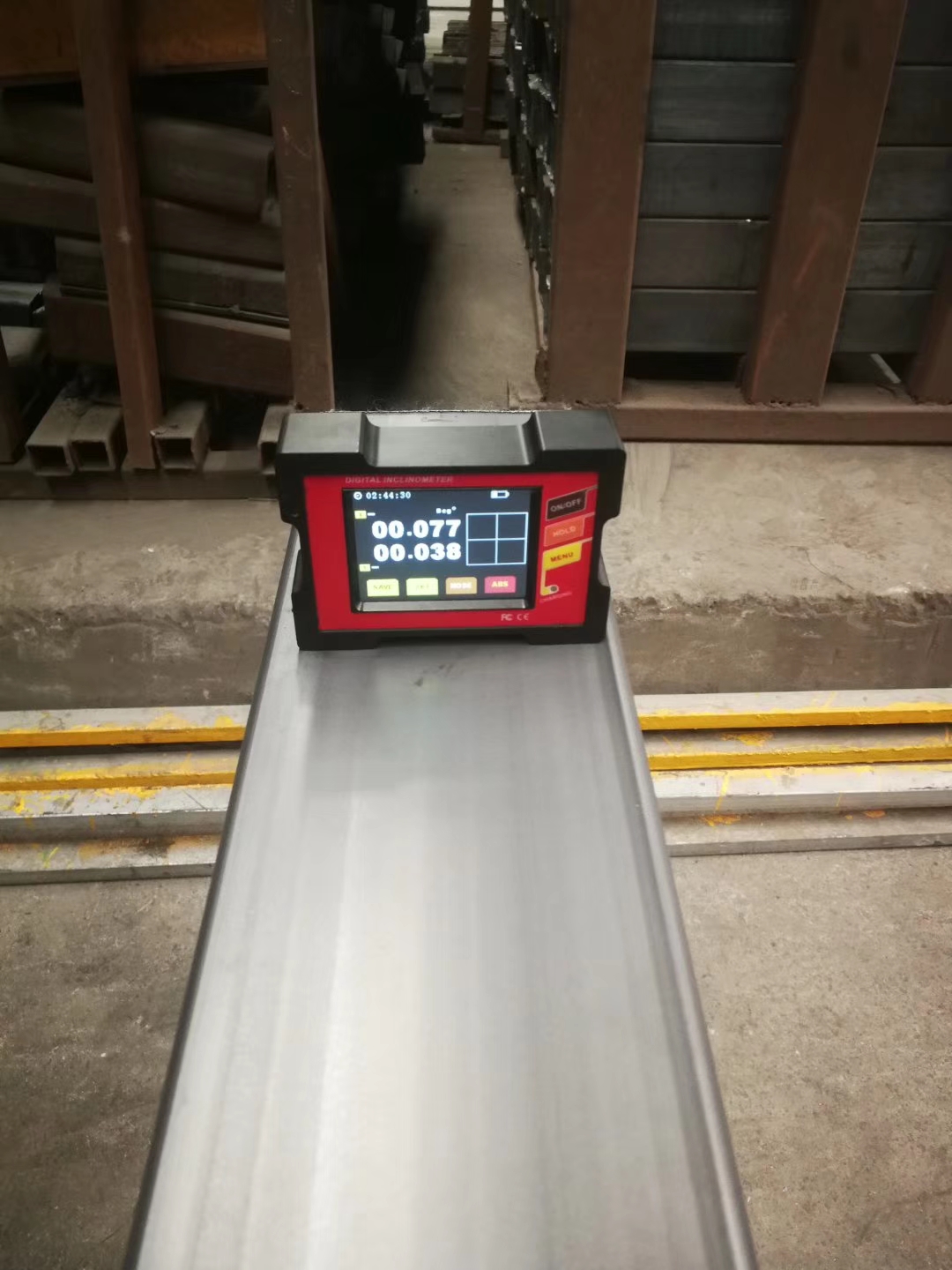

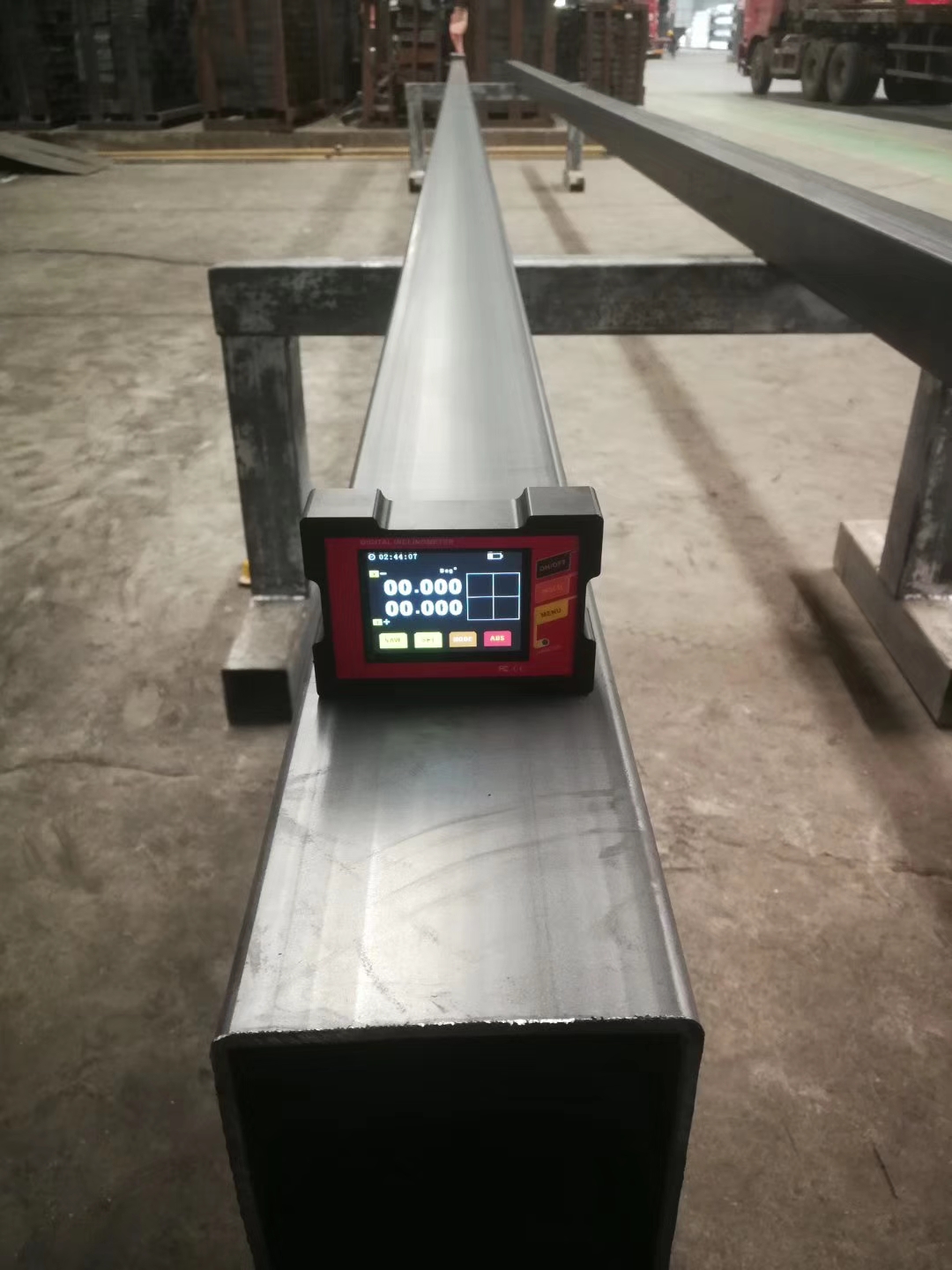

    150x150mm方管 扭曲度测试2
