China Steel Conduit Pipe BS4568-1970 Conduit Manufacture and Factory

Steel Conduit Pipe BS4568-1970 Conduit

Short Description:

BS4568 threading pipe is a metal threading pipe with two ends of the wire. Uniform wall thickness, inside and outside the wall with zinc layer protection, strong corrosion resistance, simple installation, is used to protect wire and cable.

Send email to us Whatsapp

Product Detail

Product Tags

Product Description:

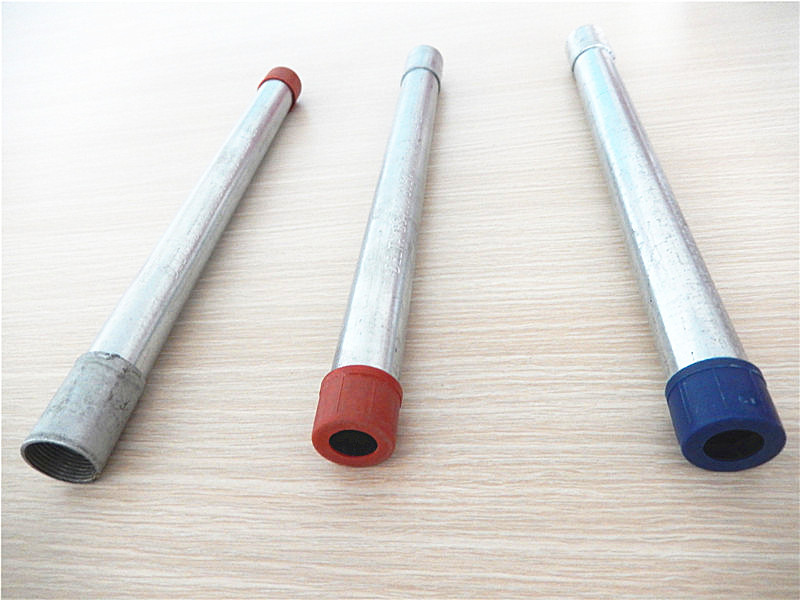

Bs4568 Conduit Pipe

Standard:BS4568-1970

Material: Steel

Technique: Cold rolled

Finishes: Hot-dip Galvanized, Pre-galvanized

Grade/Material: 10#, 20#, 45#, Q195, Q235, Q345, 16Mn, ST 37.4, etc.

Secondary or not: Non-secondary

Production capacity: 3500 ton/week

Section shape: Round

Outer diameter: 20-32mm

Wall thickness: 0.5-20mm

Length: 3.05 or 3.75m

Technique tolerance: OD+/-0.5mm, WT +/-0.03mm, L+/-5mm

Surface treatment: Galvanized, painted, oiled, printed or powder coated

Zinc coated: class 3, 80-120 g/m2; class 4, 275-500 g/m2

Color: Silver, black or painted as request

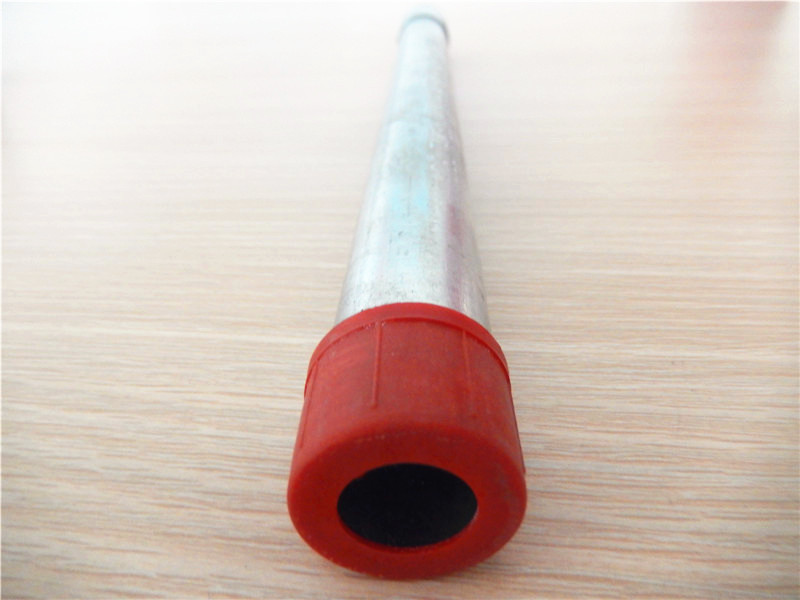

Ends of pipe: One side threaded with coupling, one side with plastic cap

Minimum quantity or order: 10Mt

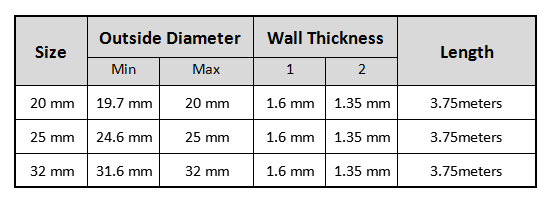

Product Specification:

Packing& Loading:

Loading Port: Tianjin Xingang Port, China

Package: 1.in bundle for 20-25mm, 8pcs per small bundle, then 80pcs into one big bundle

2.Waterproof package with plastic cloth;

3.Standard export package;

4.According to customers

Company Introduction :

Welcome to Tianjin Rainbow Steel. We manufacture steel products or steel structure for the Solar Mounting Steel Structure, Transmission & Distribution Steel Structures (Towers & Poles) , Construction, Industrial, Scaffolding and Greenhouse Construction. Tianjin Rainbow Steel Group was founded in 2000, Located in Tianjin City. After several years of development, Rainbow Steel has developed into an intergrated iron and steel enterprise of galvanized steel pipe, galvanized steel angle bar, galvanized profiles, steel structures, and we are also the biggest electrical transmission steel tower and pole factory in china. our group has our own galvanizing mill, So all the jobs can be galvanized from our own factory. Discover our vast metal product range including Steel Pipes, Iron Angles, Iron Beams, Perforated Steel Products, Welded Steel Structures, Steel Tower&Pole, Exciting projects, extensive industry expertise and high-quality service offering.
