China Scaffolding Accessories Scaffold Forged Fixed Beam Clamp Girder Coupler Manufacture and Factory

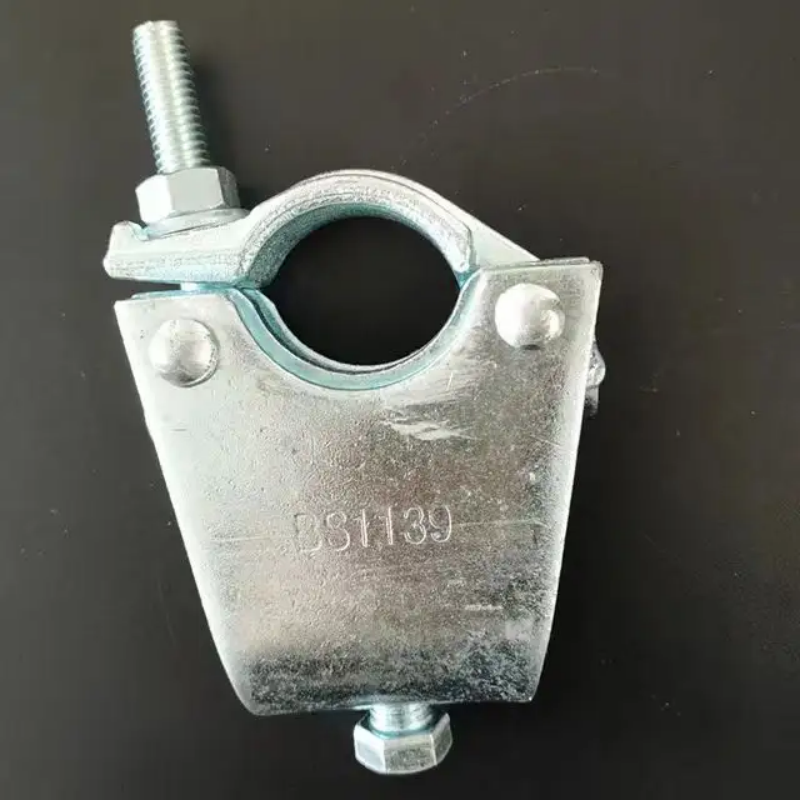

Scaffolding Accessories Scaffold Forged Fixed Beam Clamp Girder Coupler

Short Description:

Scaffolding Couplers or scaffolding clamps is the main part of the tubular scaffolding system, girder coupler plays a fasten and connection functions in system. Girder coupler simple structure and big loading power, make couplers easier and widely used on construction project.The forged beam coupler is a high-strength connector made from premium steel, suitable for construction, bridges, and industrialfacilities. Girder coupler offers excellent durability, corrosion resistance, and precision.

Material: Q235, Q355

Surface treatment: Hot Dip Galvanized

Weight: 0.58-0.9kg

MOQ: 100pcs

Send email to us Whatsapp

Product Detail

Product Tags

Product Description

The forged beam coupler is a high-strength connector made from premium steel, suitable for construction, bridges, and industrialfacilities. Girder coupler offers excellent durability, corrosion resistance, and precision.

Scaffolding Couplers or scaffolding clamps is the main part of the tubular scaffolding system, girder coupler plays a fasten and connection functions in system. Girder coupler simple structure and big loading power, make couplers easier and widely used on construction project. Scaffolding couplers include swivel and fixed coupler, forged/casting and pressed coupler, etc. Different couplers have their own unique characteristics and be used in different construction situations.

The standards for forged fasteners mainly include the following aspects:
Material requirements: The manufacturing material of the fastener must comply with national standard regulations, and the selection should comply with GB/T14975 Stainless steel plates, bars, or pipes in accordance with standards such as GB/T14976 and GB/T13296. 1. Manufacturing process requirements: Reasonable forging or pressing processes and process parameters must be used to avoid defects such as cracks and slag inclusions.

Dimensional accuracy requirements: The dimensional accuracy must meet the requirements on the drawing and must be within the allowable tolerance range. Key dimensions must be inspected to ensure they meet the requirements.

Surface quality requirements: The surface of the fastener must be clean, smooth, and flat, without small cracks, bubbles, slag inclusions and other defects. The surface should be treated with methods such as polishing, sandblasting, atomization, and sanding to improve surface quality

Product Specification

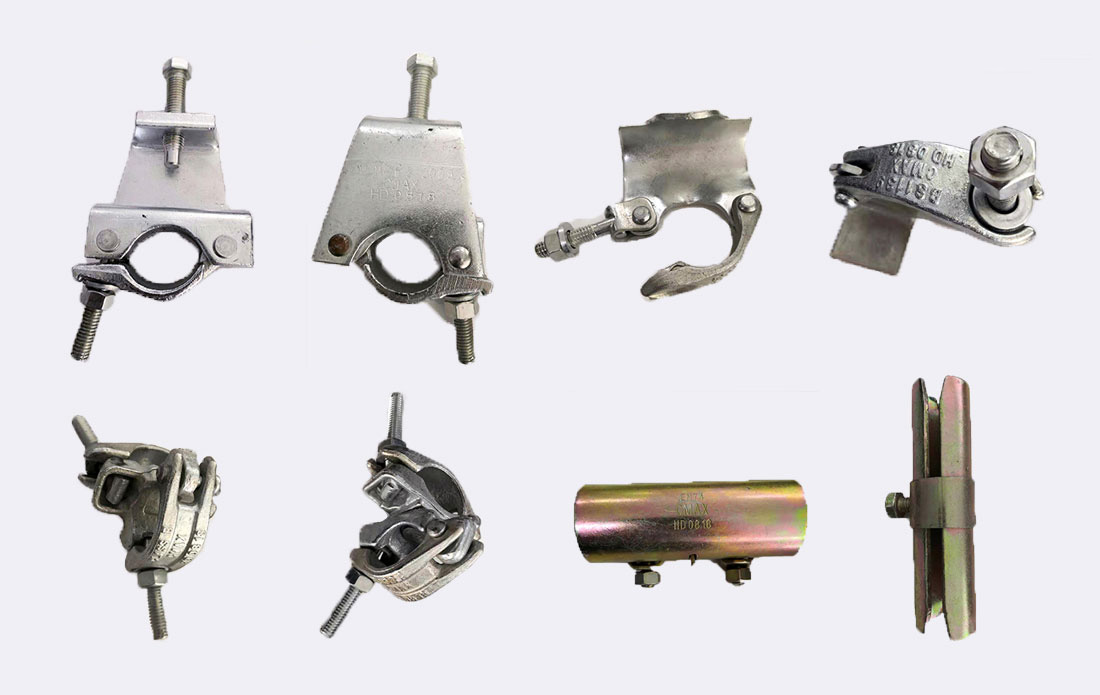

1. Pressed scaffolding clamp

Item	Product Name	Type	Thickness	Outer Diameter	U.W	PC of 20`GP
1	Double Coupler	Pressed	4.75mm	48.3mm	0.82kg	25000
2	Swivel Coupler	Pressed	4.5*4.75mm	48.3mm	0.99	23500
3	Sleeve Coupler	Pressed	3.5mm	48.3mm	1.0kg	20736
4	Inner Joint Pin	Pressed	4.5mm	48.3mm	0.7kg	35000
5	Half Coupler	Pressed	4.75mm	48.3mm	0.45	49000
6	Board Retaining	Pressed	4.75mm	48.3mm	0.56kg	35000
7	Putlog Coupler	Pressed	4.75mm	48.3mm	0.57kg	35000

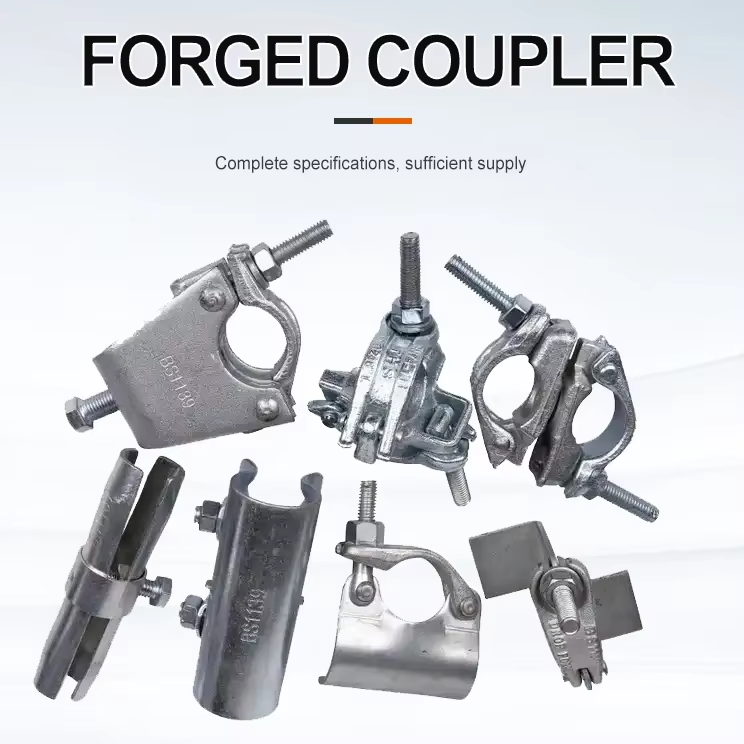

2. Drop forged scaffolding clamp

Item	Product Name	Type	Thickness	Outer Diameter	U.W	PC of 20'GP
1	Double Coupler	Drop Forged		48.3mm	1.0-0.98kg	24000
2	Swivel Coupler	Drop Forged		48.3mm	1.12kg	21000
3	Sleeve Coupler	Drop Forged	3.5mm	48.3mm	0.98--1.0kg	21000
4	Inner Joint Pin	Drop Forged		48.3mm	1.05kg	24000
5	Board Retaining	Drop Forged	4.75mm	48.3mm	0.61kg	35000
6	Girder Coupler	Drop Forged	11.5mm	48.3mm	1.52	15000
7	Putlog Coupler	Drop Forged	4.75mm	48.3mm	0.61kg	35000

Applications

Product Display

Product advantages:
1. Safety, can provide higher case protection.
2. Quality advantage: The quality of couplers produced by forging technology is superior to other types of products.
3. Convenient maintenance, forging process is not easy to rust or damage.

Packing and loading

Company Profile

Tianjin Rainbow Steel Group, a professional manufacturer and supplier in China, manufacturing steel products and structure fortheSolar Mounting System.
We hold the newest advanced machines and the best manufacturing skills, and a strict quality control system with a complete set ofupdated devices for testing and inspection from raw material out sourcing to cargo delivery. We got the certificate of BV and ISO9001:2000, products can meet ASTM DIN JIS GB BS standards for different markets.

Our products have spread all over the world, such as Australia, North America, South America, Southeast Asia, European countries like Germany, Italy, Asia like India and UAE, etc.

"Winning by Quality, Winning by Service", welcome to Tianjin Rainbow Steel.
