China Scaffolding Accessories Galvanized Hollow and Solid Scaffolding Jacks Base Manufacture and Factory

Scaffolding Accessories Galvanized Hollow and Solid Scaffolding Jacks Base

Short Description:

Scaffold Jack Base are used as the base for scaffolding bays, in which standards are put on. Provide stability by adjusting the level of the bay on uneven ground. We specialize in formwork and scaffolding for many years. We can offer you the best price by matching your specific need and requirement. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.We are looking forward hearing from you, please feel free contact us for further details.

Material: Q235 Steel

Surface treatment: galvanize

Size: 400/500/600/800/1000mm Per customer request

Application: Scaffolding

Send email to us Whatsapp

Product Detail

Product Tags

Product Description

Designed with precision and durability in mind, our Adjustable Jack Base is essential for maintaining all scaffolding standards at the same horizontal plane, effectively dispersing the load of standards to enhance overall structural integrity.

Crafted from high-quality materials, the Adjustable Jack Base is a versatile addition to your scaffolding setup. Whether you are using it as a Base Jack Scaffold, Hollow Screw Jack Base, or Scaffolding Hollow Jack, this product guarantees reliable performance under various conditions. The robust design of our Jack Base Plate ensures that it can withstand heavy loads, making it an ideal choice for both residential and commercial construction projects.

Our Scaffolding Jack and screw jack options are engineered to provide maximum support and stability, allowing you to work with confidence. The Steel Solid Jack Base variant offers additional strength, making it perfect for demanding applications where safety is paramount.

Product Specification

Scaffold JACK BASE with square plate
DIAMETER MM	LENGTH MM	PLATE SIZE MM	SURFACE TREATMENT	WEIGHT KGS
Φ30(SOLID)	400	120X120X4	GALVANIZED/PAINTED	2.61
Φ30(SOLID)	600	120X120X4	GALVANIZED/PAINTED	3.58
Φ32(SOLID)	400	120X120X4	GALVANIZED/PAINTED	2.9
Φ32(SOLID)	600	120X120X4	GALVANIZED/PAINTED	4.01
Φ34(SOLID)	400	140X140X4	GALVANIZED/PAINTED	3.41
Φ34(SOLID)	600	140X140X4	GALVANIZED/PAINTED	4.67
Φ38(HOLLOW)	600	150X150X5	GALVANIZED/PAINTED	3.39
Φ48(HOLLOW)	600	150X150X6	GALVANIZED/PAINTED	4.33

Applications

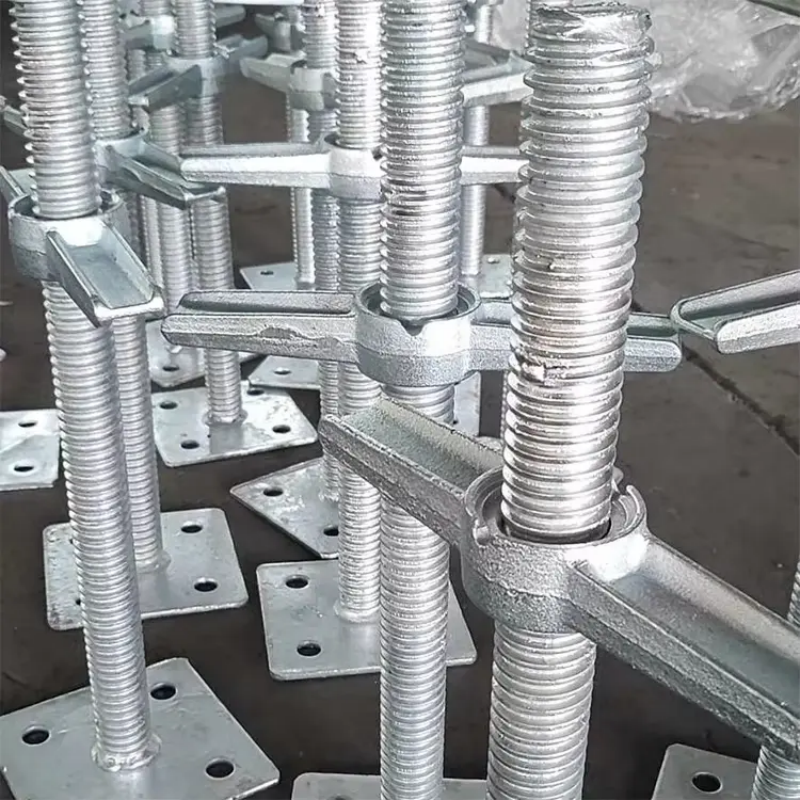

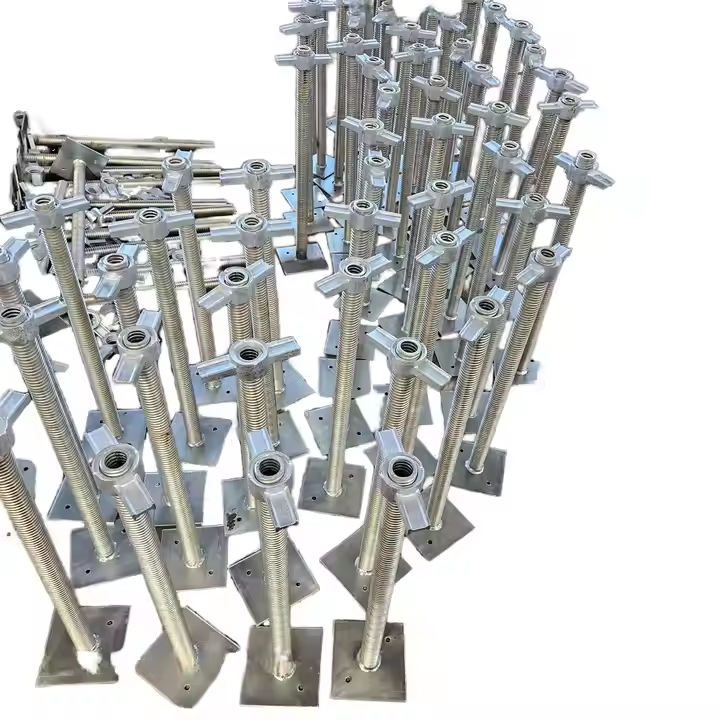

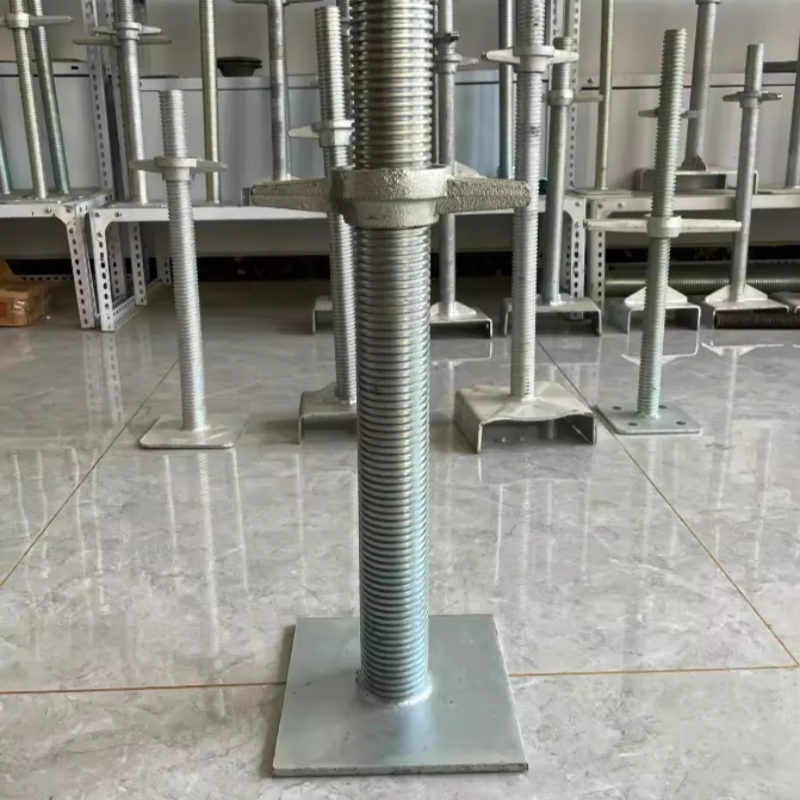

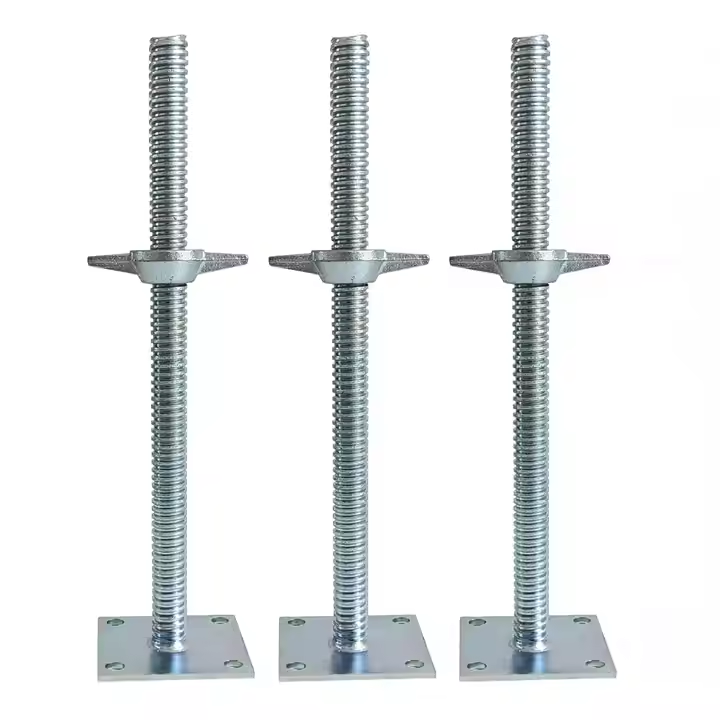

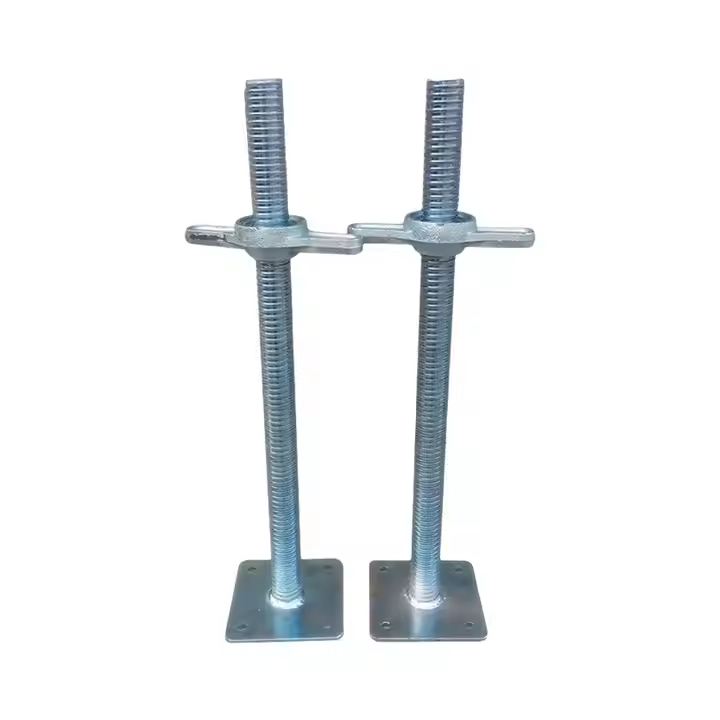

Product Display

Adjustable jack base is also called adjustable screw jack, scaffold jack, leveling jack, base jack or jack base, etc. It consists of a base plate, a threaded tube and a nut. The surface treatments include hot dip galvanized and electric galvanized. Adjustable base jack is used as the foundation for the scaffold. Its height is adjustable, so it can adapt to uneven construction surfaces and ensures the entire scaffolding system remains level. Adjustable base jack is compatible with all the systems such as Ringlock System, Kwikstage System,Cuplock System and Frame System.

Packing and loading

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

FAQ

1. who are we?
We are based in Tianjin, China, start from 2014,sell to Oceania(45.00%),Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Steel Props, Scaffoldings, Scaffolding Accessories, Formwork, Formwork Accessories;
4. why should you buy from us not from other suppliers?
High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
