Modern Design Galvanized Scaffolding Plank

Short Description:

Scaffolding Plank is constructed in profiled galvanized layers, the high quality of which guarantees their solidity and durability over the years. Scaffolding Plank has got a non-slip surface which allows anyone to work on the scaffolding with the greatest safety. Scaffolding Plank is constructed by a using completely automatic system, so does not need any maintenance. In order to ensure high efficiency Scaffolding Plank are constructed both with right and left hooks which allows their replacement with other ready made boards.

Material: Q195 /235 steel

Technique: pressed /welding

MOQ: 500 Pcs

Application: Outdoor Building Construction

Send email to us Whatsapp

Product Detail

Product Tags

Product Description

Scaffolding Walk Board

Scaffolding Plank is constructed in profiled galvanized layers, the high quality of which guarantees their solidity and durability over the years. Scaffolding catwalk has got a non-slip surface which allows anyone to work on the scaffolding with the greatest safety. Construction Deck is constructed by a using completely automatic system, so does not need any maintenance. In order to ensure high efficiency they are constructed both with right and left hooks which allows their replacement with other ready made boards.

Advantage:

1. Strengthen Support designs with much stronger support force;
2. Better side box design with better Anti_deforming Capacity;
3. Provided with non-slip indentation with no cutting edge;
4. Long term usage. Galvanized steel planks do not absorb water or chemicals;
5. Works with all styles of modular system and tube and clamp scaffold material

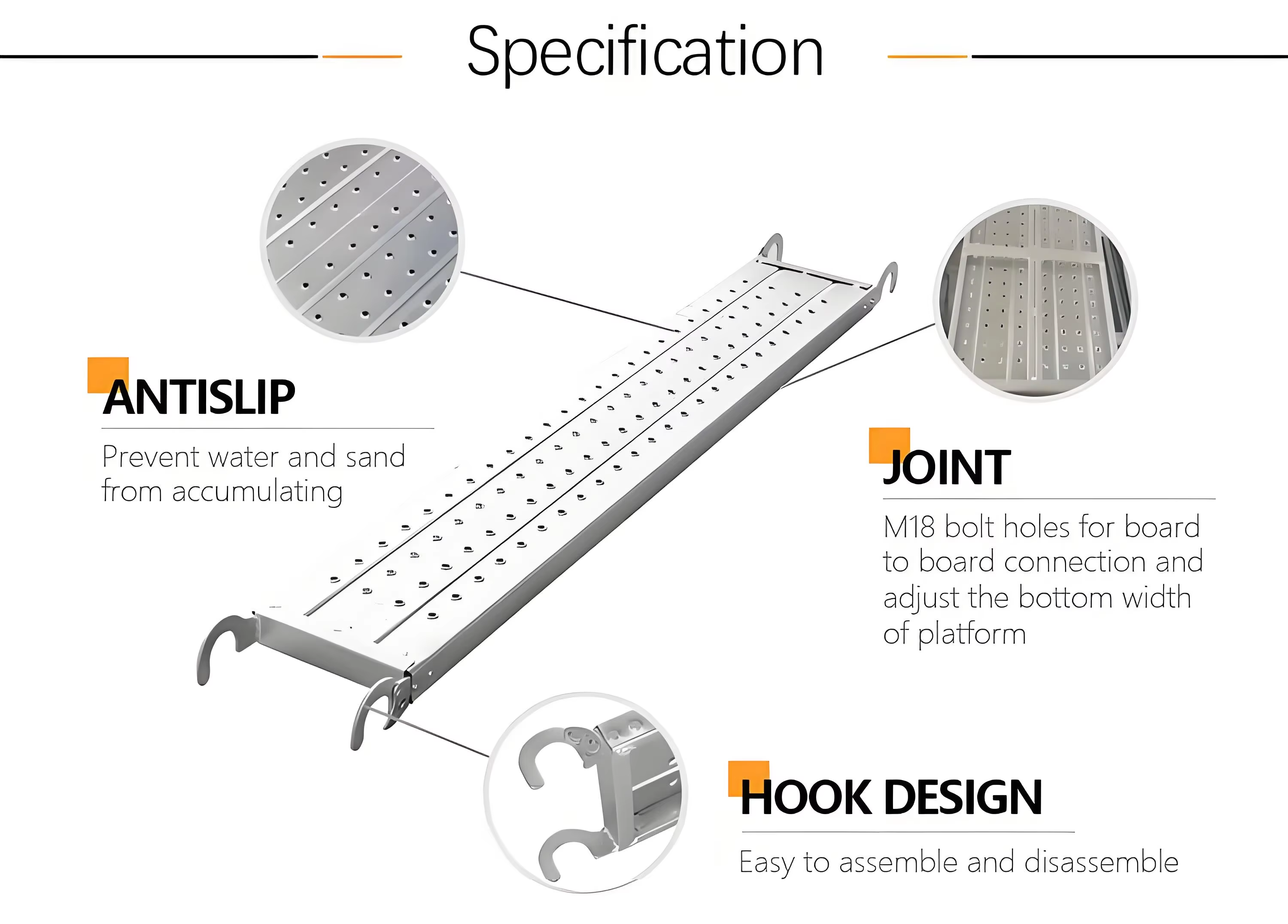

Product Specification

1.Metal Plank

Types	Width	Height	Thickness	Length
210	210 mm	45 mm	1.1-2.0 mm	500-4000 mm
225	225 mm	38 mm
240	240 mm	45 mm
250A	250 mm	40 mm
250B	250 mm	50 mm
300	300 mm	50 mm
230	230 mm	63 mm
240	240 mm	63 mm

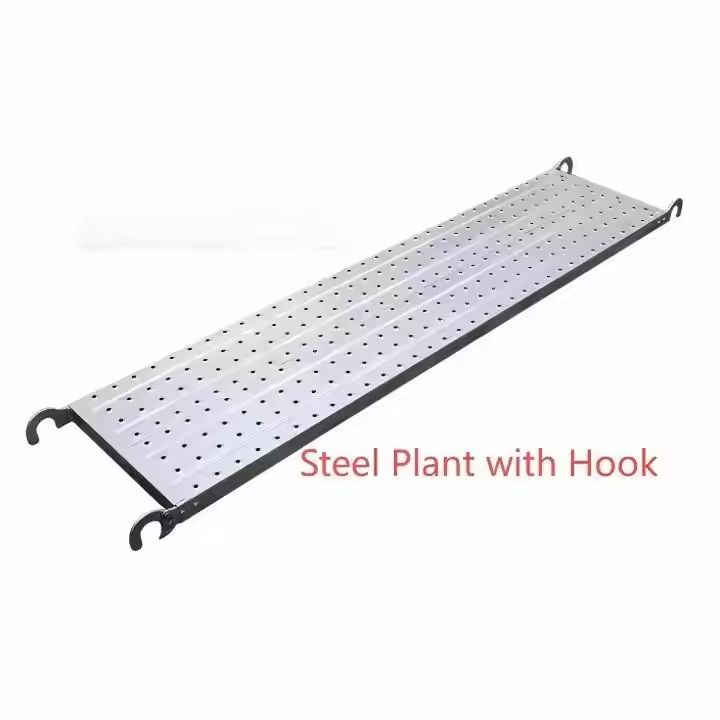

2.Metal Plank With Hook

Description	Width	Height	Thickness	Length
Steel plank with hook	225 mm	63 mm	1.5-2.0 mm	730-3070 mm
Steel plank with hook	230 mm
Steel plank with hook	240 mm

3.Catwalk

Types	Width	Height	Thickness	Length
420	420 mm	45 mm	1.1-2.0 mm	1000-2500 mm
450	450 mm	45 mm
480	480 mm	45 mm
500	500 mm	50 mm
225	225 mm	38 mm

Applications

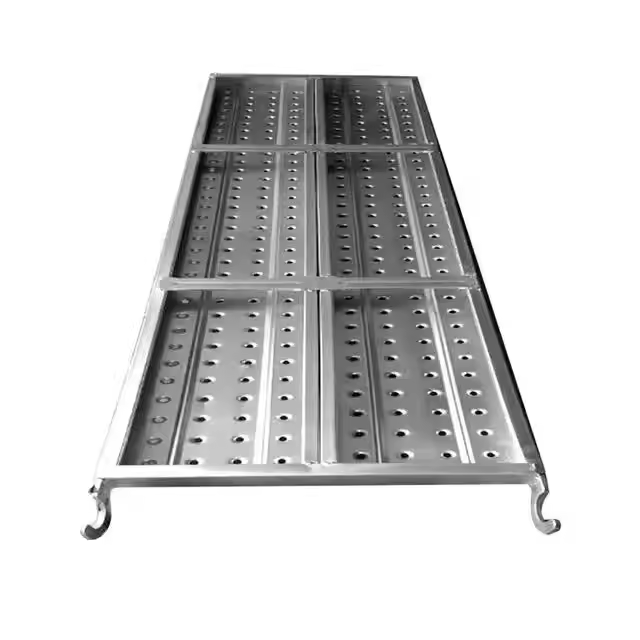

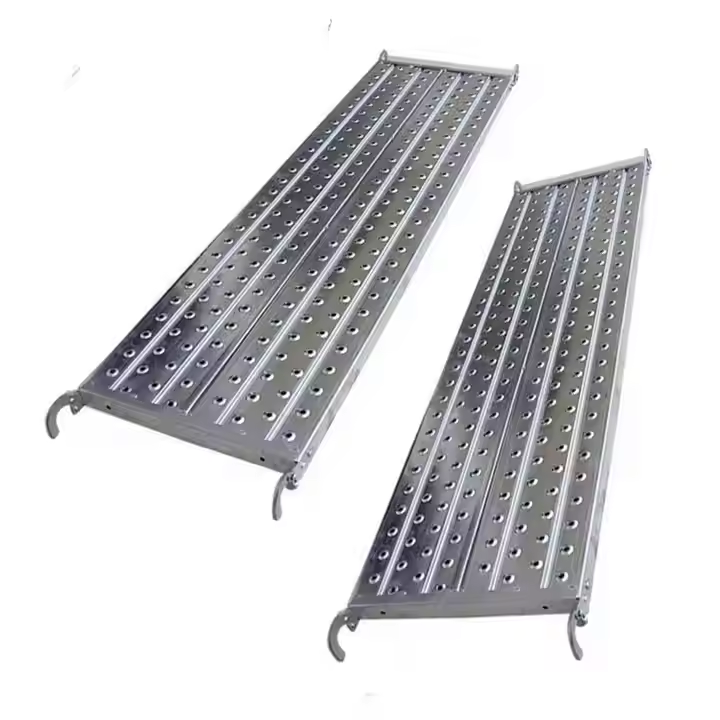

Product Display

Structural Reinforcement: Embedded reinforcement ribs significantly enhance compressive strength and overall stability. beam design with firmly connected internal ribs makes the product sturdy and durable.
Durability: Carbon steel cold processing combined with hot-dip galvanizing extends product life to 6-8 years.
Economic Efficiency: Compared to other scaffolding planks, hot-dip galvanized steel planks offer lower procurement costs and higher cost-effectiveness. High long-term ROI, with 30%-35% residual value after the usage cycle.
Easy Maintenance: Surface anti-slip grooves and bottom sand leak holes design facilitate easy cleaning and maintenance, reducing sand accumulation.
Cost-Effectiveness Analysis: Compared to wooden and angle steel mesh planks, hot-dip galvanized steel planks have obvious advantages in price, durability, and maintenance costs.
Versatility: Suitable for various construction environments, meeting different user needs and improving construction efficiency.

Packing and loading

Company Profile

FAQ

1. who are we?
We are based in Tianjin,China,start from 2014,sell to Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Steel Props, Scaffoldings, Scaffolding Accessories, Formwork, Formwork Accessories;
4. why should you buy from us not from other suppliers?
High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
