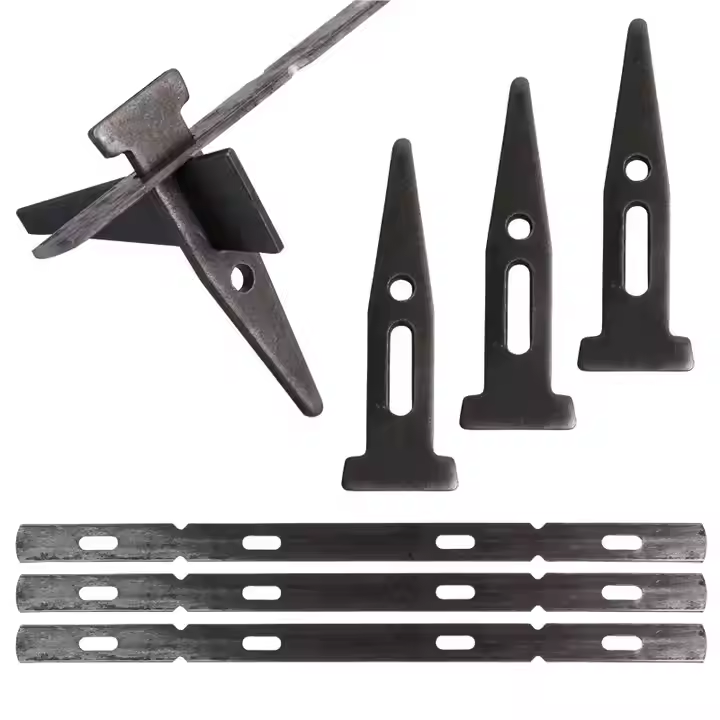

The Aluminium Formwork is normally fixed by Nominal Wall Tie or Full Wall Tie. The main parts to fix the formwork include the Wedge and Pin. There are three kinds of Pins can be chosen. One kind is the Flat Head Pin, the second is the Round Head Pin and the third one is the Combo Filler Pin. There are two different kinds of Wedges to be used. One is the Flat Wedge and another is the Curved Wedge.

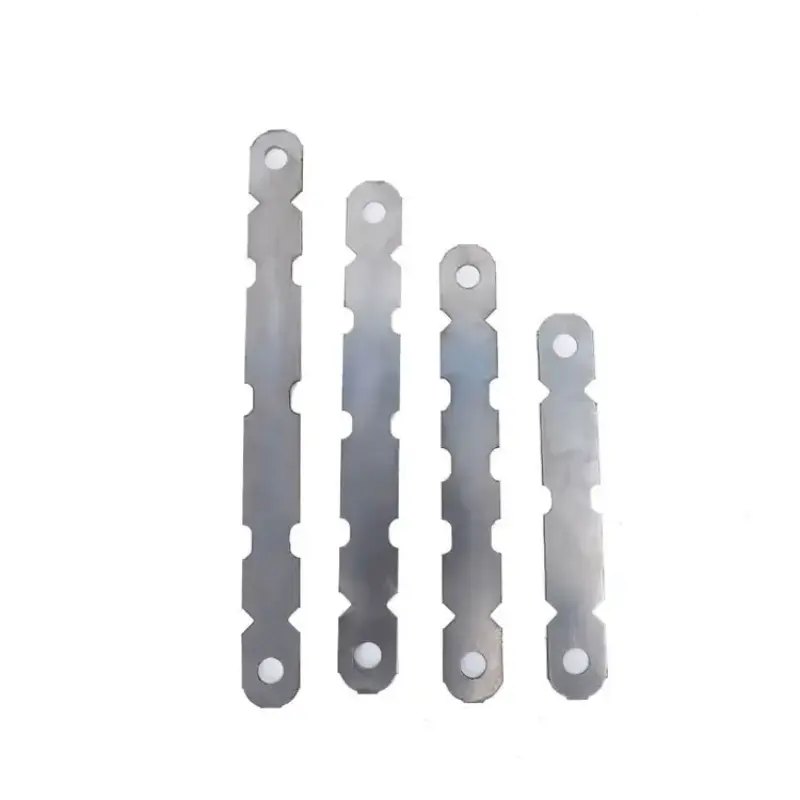

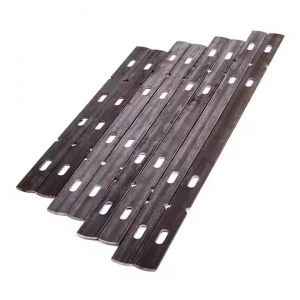

Formwork Accessories Flat Tie
Formwork Accessories Flat Tie is a key component used to strengthen the aluminum formwork in the aluminum formwork system. Formwork Accessories Flat Tie main function is to hold the aluminum formwork on both sides tightly during the concrete construction, prevent the problems such asmold expansion and mold explosion in the construction process, and ensure the construction quality.
Commonly used material
High-strength steel: such as 65 manganese steel, with high strength, high toughness and good wear
resistance, can withstand the huge side pressure generated when the concrete is poured, to ensure that the tensile sheet will notbe deformed or broken during use. Aluminum alloy: part of the drawing is made of high-strength aluminum alloy material, with thecharacteristics of light weight and corrosion resistance, while meeting the performance, it can also reduce the labor intensity ofconstruction personnel and improve construction efficiency
