China High Quality Drop Forged Scaffolding Sleeve Coupler Manufacture and Factory

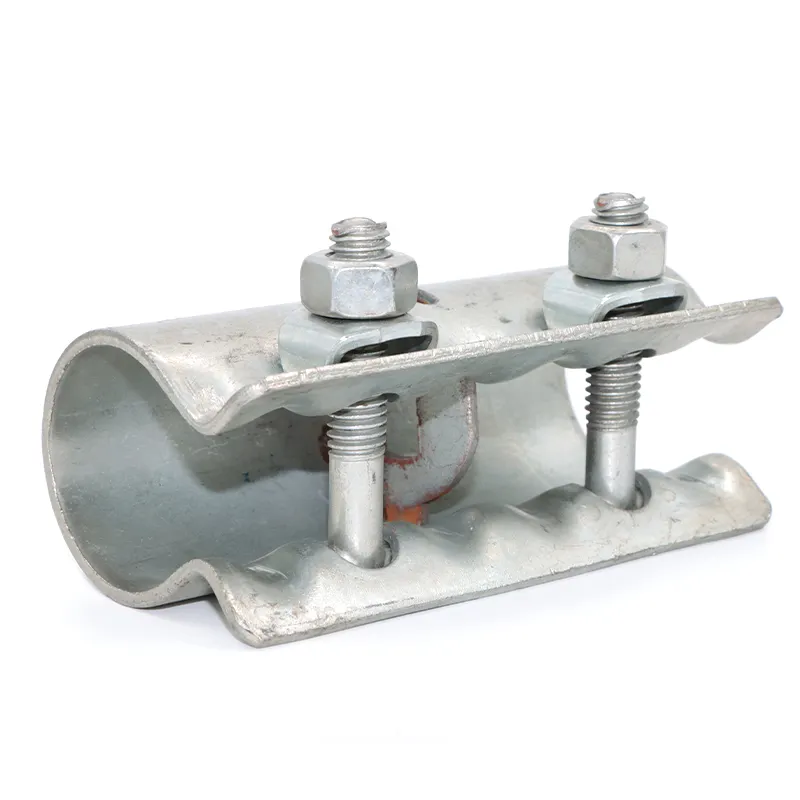

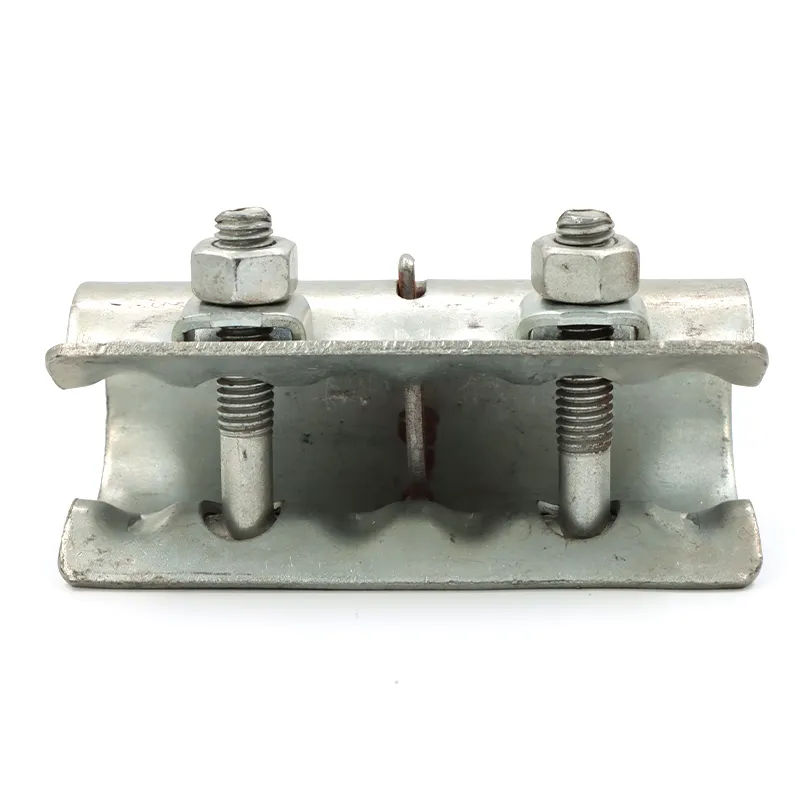

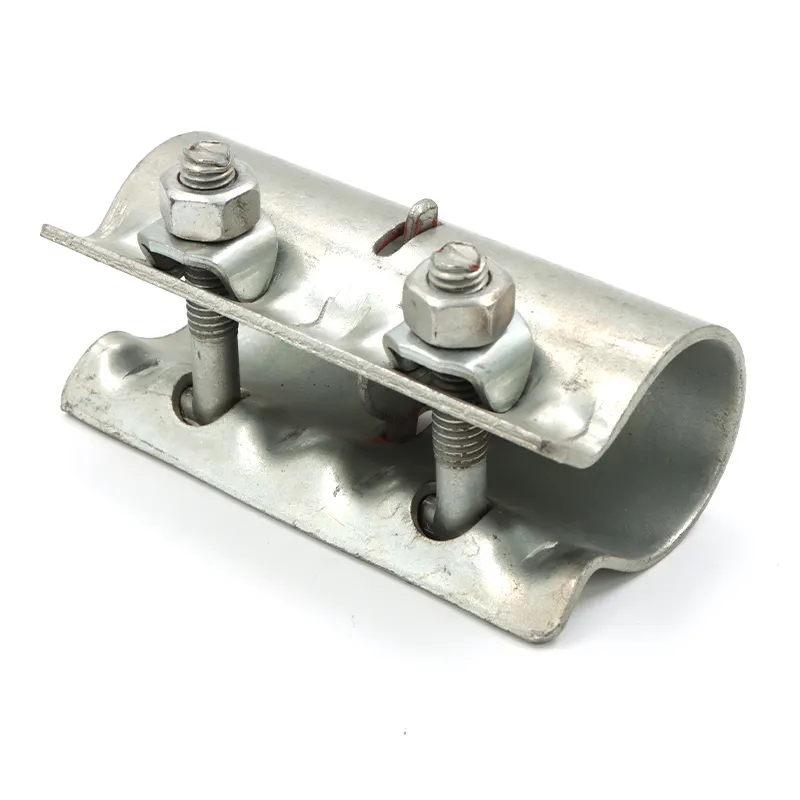

High Quality Drop Forged Scaffolding Sleeve Coupler

Short Description:

Scaffolding Couplers or scaffolding clamps is the main part of the tubular scaffolding system, girder coupler plays a fasten and connection functions in system.Fastener type steel tube scaffold, is the most widely used scaffold system in building engineering construction for it’s simple processing, low cost and economy. Except for erection of scaffolding, it can also be used to build derrick, feeding platform and the pier, etc.

Material: Q235, Q355

Surface treatment: Hot Dip Galvanized

Weight: 0.58-0.9kg

MOQ: 100pcs

Send email to us Whatsapp

Product Detail

Product Tags

Product Description

The forged beam coupler is a high-strength connector made from premium steel, suitable for construction, bridges, and industrialfacilities. Scaffolding butt joint coupler offers excellent durability, corrosion resistance, and precision.

The standards for forged fasteners mainly include the following aspects:
Material requirements: The manufacturing material of the fastener must comply with national standard regulations, and the selection should comply with GB/T14975 Stainless steel plates, bars, or pipes in accordance with standards such as GB/T14976 and GB/T13296.
Manufacturing process requirements: Reasonable forging or pressing processes and process parameters must be used to avoid defects such as cracks and slag inclusions.

Dimensional accuracy requirements: The dimensional accuracy must meet the requirements on the drawing and must be within the allowable tolerance range. Key dimensions must be inspected to ensure they meet the requirements.

Fastener or Coupler is between steel tube and steel pipe fittings, there are three kinds of the form,namely the 1. Double Coupler(right-angle fastener/fixed coupler) for two vertical intersecting pipe connection, it depends on the fastener and the friction between the steel pipe to transfer load. 2. Swivel Coupler(rotating fastener) for two arbitrary Angle intersecting steel pipe connection 3. Sleeve Coupler(docking fastener) used for steel pipe butt joint two long connection.

Product Specification

1. Pressed scaffolding clamp

Item	Scaffolding Sleeve Coupler
Material	Q235

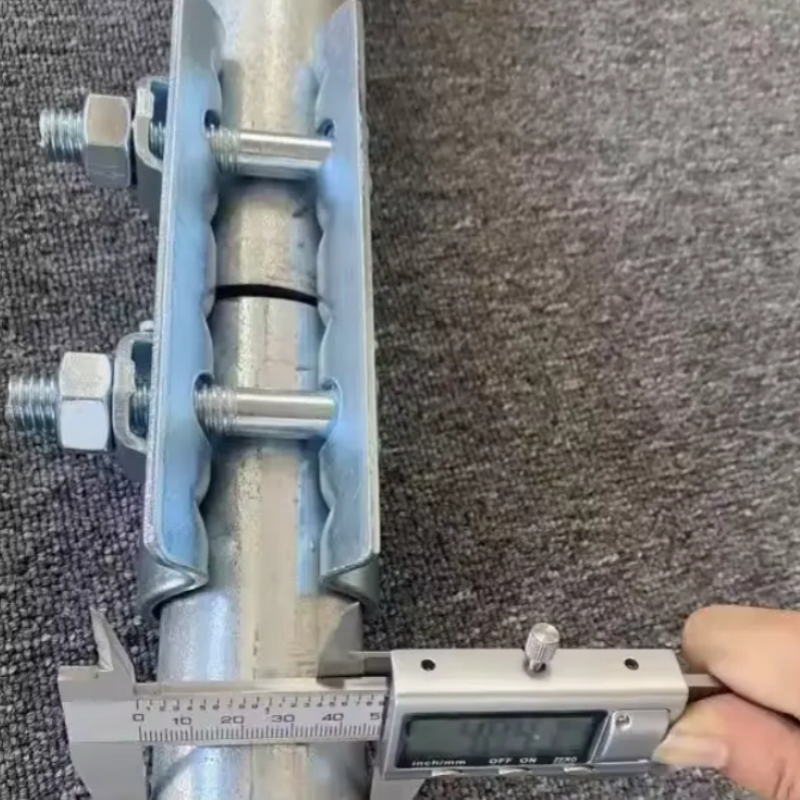

Dimensions	48.3mm
Weight	1.10kg
Surface	Hot-dip galvanization, electro galvanization
Standard	EN74
Note	OEM service is available
MOQ	1000pieces
Package	Woven bag and pallet
Payment Terms	TT,L/C, we can contact in detail
Delivery Time	20-30days

Applications

Product Display

Product advantages:
1. Safety, can provide higher case protection.
2. Quality advantage: The quality of couplers produced by forging technology is superior to other types of products.
3. Convenient maintenance, forging process is not easy to rust or damage.

Packing and loading

Company Profile

Tianjin Rainbow Steel Group, a professional manufacturer and supplier in China, manufacturing steel products and structure fortheSolar Mounting System.
We hold the newest advanced machines and the best manufacturing skills, and a strict quality control system with a complete set ofupdated devices for testing and inspection from raw material out sourcing to cargo delivery. We got the certificate of BV and ISO9001:2000, products can meet ASTM DIN JIS GB BS standards for different markets.

Our products have spread all over the world, such as Australia, North America, South America, Southeast Asia, European countries like Germany, Italy, Asia like India and UAE, etc.

"Winning by Quality, Winning by Service", welcome to Tianjin Rainbow Steel.
