Formwork Tie Rod System Formwork Accessories Casting Water Barrier Nut

Short Description:



Formwork water stoppers nut are used in water retaining structures. Cast into the concrete wall between two separate tie bars.After pouring, tie rods are removed, the water barrier remains in situ. Allow two reducers per water barrier. Our formwork water stopper nut has various size and shape, customized is also available.




  • Size: 15/17mm,
  • weight: 0.25/0.41/0.43/0.52/0.54/0.63/1.25kg
  • Height: 86/110/112/113/150mm or customized
  • MOQ: 1000pcs
  • Product Detail

    Product Tags

    company philosophy

    Product Description

    Water Stopper Nut007

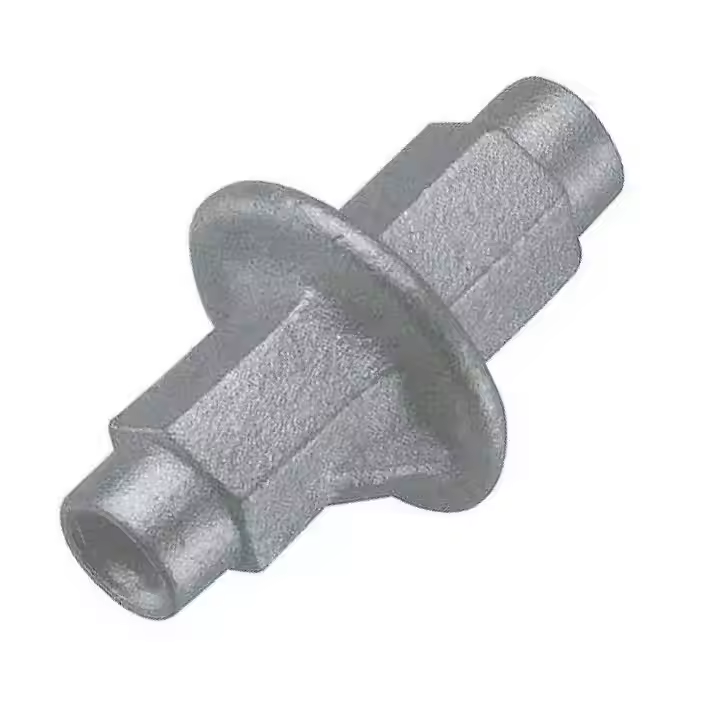

    Water Stopper Nut05

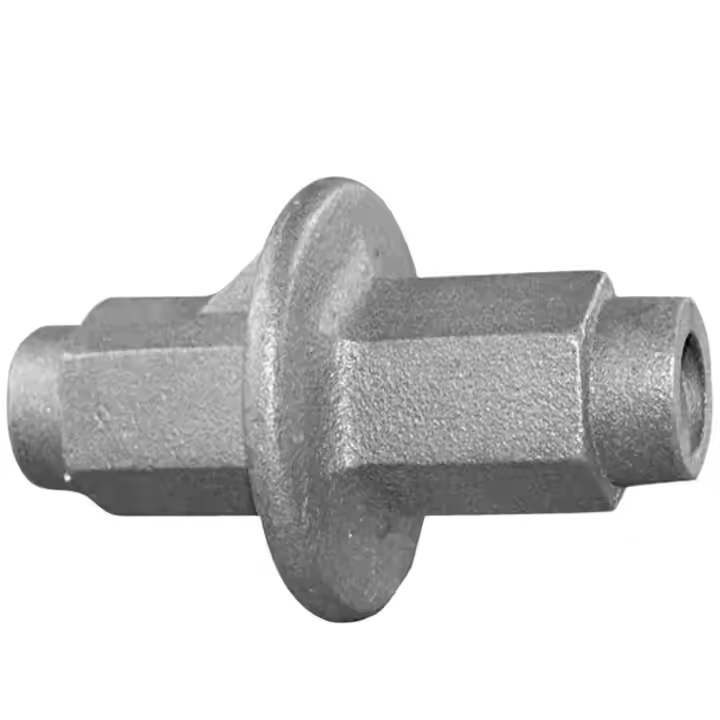

    Water Stopper Nut07

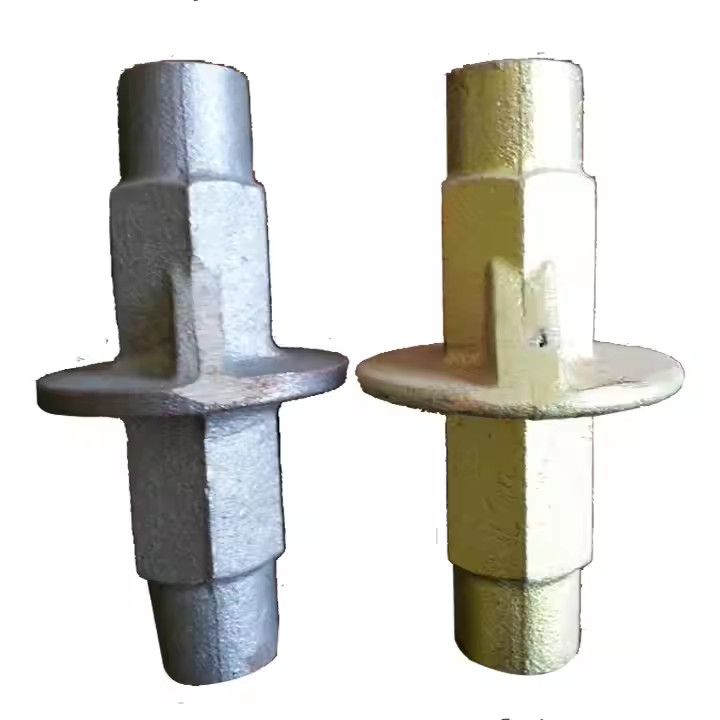

    Water Stopper Nut02

    Water Stopper/ Barrier Nut with disk is widely used as a scaffolding product that plays vital role of stopping water flow efficiently. Formwork water stoppers nut are used in water retaining structures. Cast into the concrete wall between two separate tie bars. After pouring, tie rods are removed, the water barrier remains in situ. Allow two reducers per water barrier. Our formwork water stopper nut has various size and shape, customized is also available.

    Our Formwork Water stopper Nut is Made of high quality Ductile Cast Iron material , which have high strength ,more than 180 KN

    Product Specification

    Material
    Iron/Steel
    Type
    formwork water stopper
    Surface treatment
    Galvanzied or color painted or electrostatic spraying
    Size
    12/17/20MM or customized
    Diameter of Base
    100mm
    Thread size
    customized size
    Pull force
    150-180KN
    Length
    110/100MM
    Color
    Golden/Silver
    Water Stopper Nut010

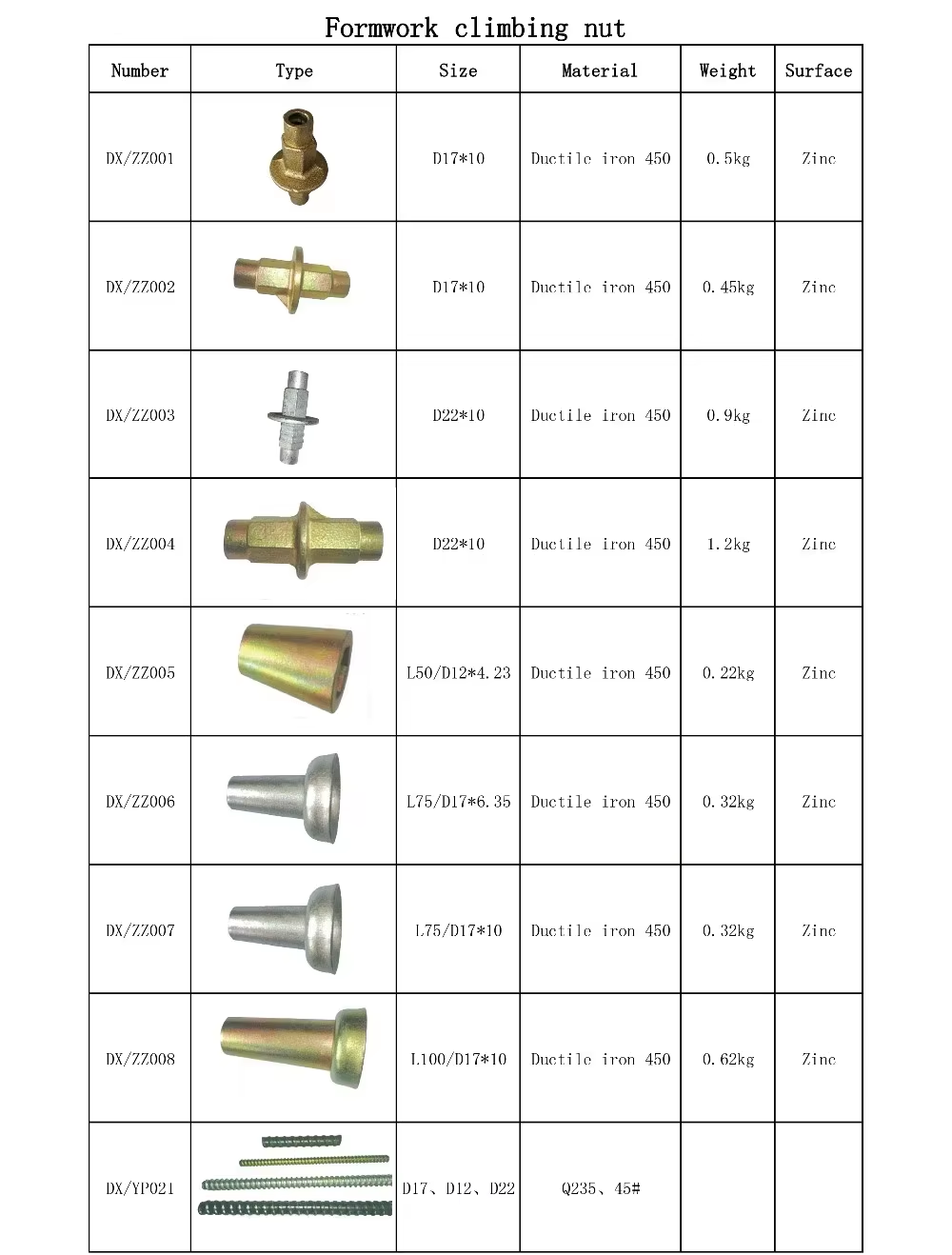

    Water Stopper Nut1.0

    Applications

    Metal U Clip013
    plywood formwork023
    Metal U Clip012
    plywood formwork015
    plywood formwork001

    Product Display

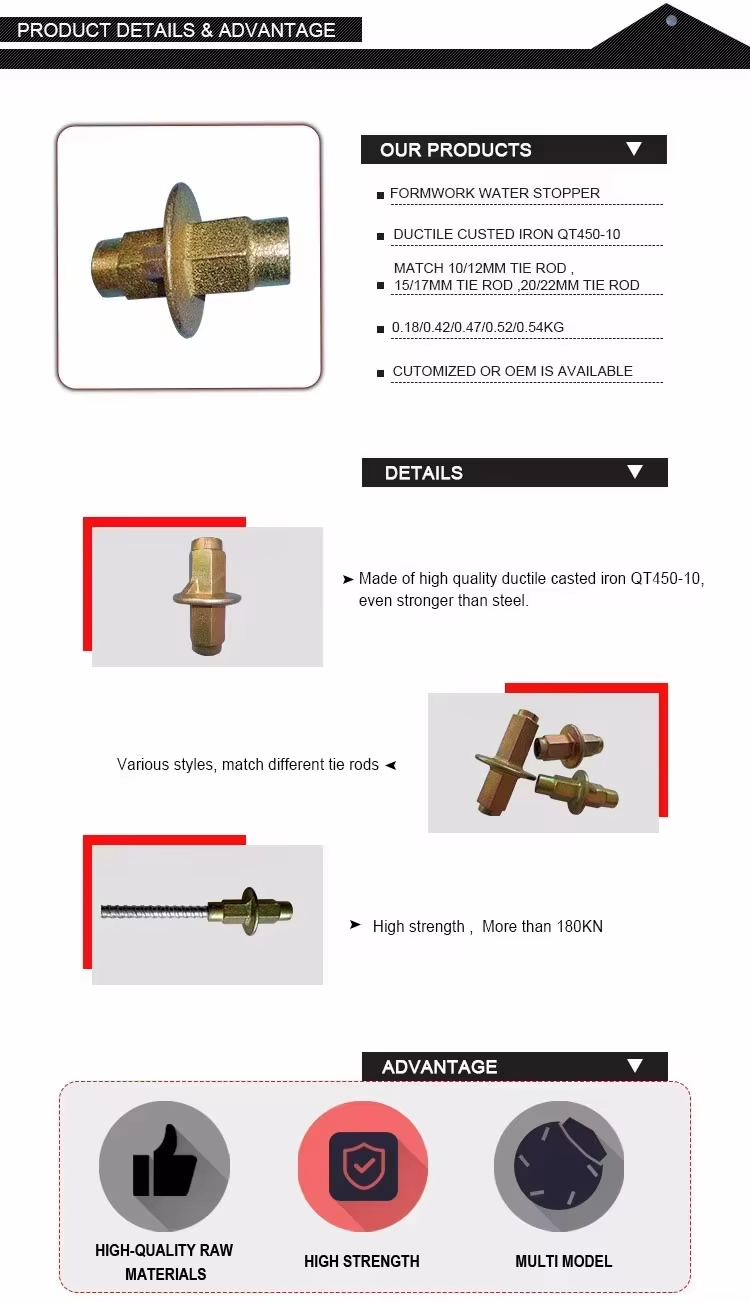

    Water Stopper Nut1.1
    Water Stopper Nut009
    Water Stopper Nut008
    Water Stopper Nut016
    Water Stopper Nut015

    Product advantages:

    1. Safety, can provide higher case protection.

    2. Quality advantage: The quality of couplers produced by forging technology is superior to other types of products.

    3. Convenient maintenance, forging process is not easy to rust or damage.

    Packing and loading

    spring clamp008

    1.The small bag packaging

    spring clamp009

    2.Pack in a big bag

    spring clamp010

    3.The big package

    spring clamp011

    4.Finally put it in the truck

    Company Profile

    formwork-clamp030

    Tianjin Rainbow Steel Group, a professional manufacturer and supplier in China, manufacturing steel products and structure fortheSolar Mounting System. We hold the newest advanced machines and the best manufacturing skills, and a strict quality control system with a complete set ofupdated devices for testing and inspection from raw material out sourcing to cargo delivery. We got the certificate of BV and ISO9001:2000, products can meet ASTM DIN JIS GB BS standards for different markets. Our products have spread all over the world, such as Australia, North America, South America, Southeast Asia, European countries like Germany, Italy, Asia like India and UAE, etc.
