China Formwork Accessories Concrete Column Form Clamps Square Column Buckle Manufacture and Factory

Formwork Accessories Concrete Column Form Clamps Square Column Buckle

Short Description:

Formwork Column Clamp are quickly adjusted and secured to ensure positive clamping of steel and timber formwork for Concrete Columns. Column Clamp are designed to cramp the formwork tightly together at the corners. Column Clamp is very convenient during wall concrete formwork construction.The adjustable column clamp can be fitted on the column by taking the wedge into the overlapping slots.

Thickness: 8mm

min length: 750mm

max length: 1055mm

Package: Pallet Packing

Send email to us Whatsapp

Product Detail

Product Tags

Product Description

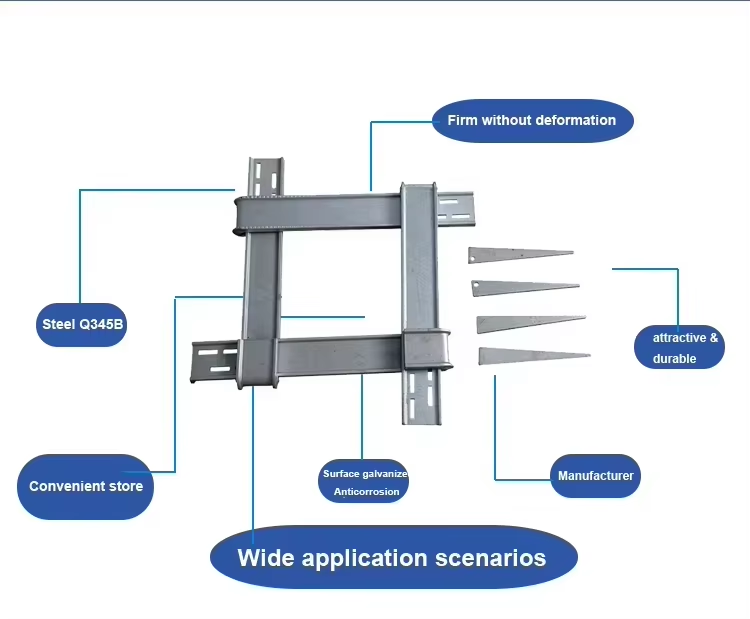

Adjustable Column Clamp

1.4 pcs of flat steel as a set is for supporting temporary formwork to reinforce concrete column.
2.The adjustable column clamp is adjusted by means of a system with slots and wedges, which gives perfect rigidity in all.
3. The adjustable column clamp is ideally suitable for a wide range column sizes, and are usable for steel or timber formwork.
4. The adjustable column clamp can be fitted on the column by taking the wedge into the overlapping slots.
5. The adjustable column clamp is welcomingly used in formwork construction as labour,time and materials are saved by completely
eliminating the cutiing and waste of timber.

Product Specification

item	value
Project Solution Capability	graphic design
Application	formwork
Design Style	Modern
Warranty	5 years
After-sale Service	Online technical support
Brand Name	RB
Model Number	formwork clamps
max length	1055mm
min length	750mm
thickness	8mm
surface treatment	painted/galvanized
weight	4.8kg
material	Q235 flat steel
Application	Building Construction
Product name	adjustable column clamp

Applications

Features

1. There is no need to use wall wires within 3 meters of the cylinder, no need for wall repair costs, and save the cost of wall wires .

2. One piece is multi-purpose, flexible to adjust, suitable for different cylinders: cube, cuboid, rhombus, polygon, etc.
3. Special steel, high strength, few accessories, high reuse rate.
4. The cross corner structure, the molding size standard, and the building qualification index reach more than 98%.

Product Display

STEP 1

Join the 4 piece of panel by slots at edge of panel, fix the corner of column formwork by adjustable corner clamp and keep the clamp the same height.

STEP 2

Put the column clamp on the corner clamp, the head of column clamp is fixed into the bent end of column clamp, make sure the column clamp is faced with beam tightly.

STEP 3

Put the wedge pin into column clamp, fix it by hammer, measure the distance between column clamp and keep the clamp the same height, install the resting panel and column clamp by the installation steps.

STEP 4

Dismantling Hit the end of wedge pin by hammer, remove the steel plate by hands.
