Formwork Accessories Adjustable Column Formwork Clamp For Construction

Short Description:

Formwork Column Clamp are quickly adjusted and secured to ensure positive clamping of steel and timber formwork for Concrete Columns.They are designed to cramp the formwork tightly together at the corners. It is very convenient during wall concrete formwork construction.


  • Thickness: 5-13mm
  • length Size: 600mm--5500mm
  • Color: Silver White
  • Advantage: Quick Installation
  • Type: Formwork Adjustable Column Clamp
  • Product Detail

    Product Tags

    company philosophy

    Product Description

    column clamp002
    column clamp005
    column clamp001
    column clamp003
    column clamp004

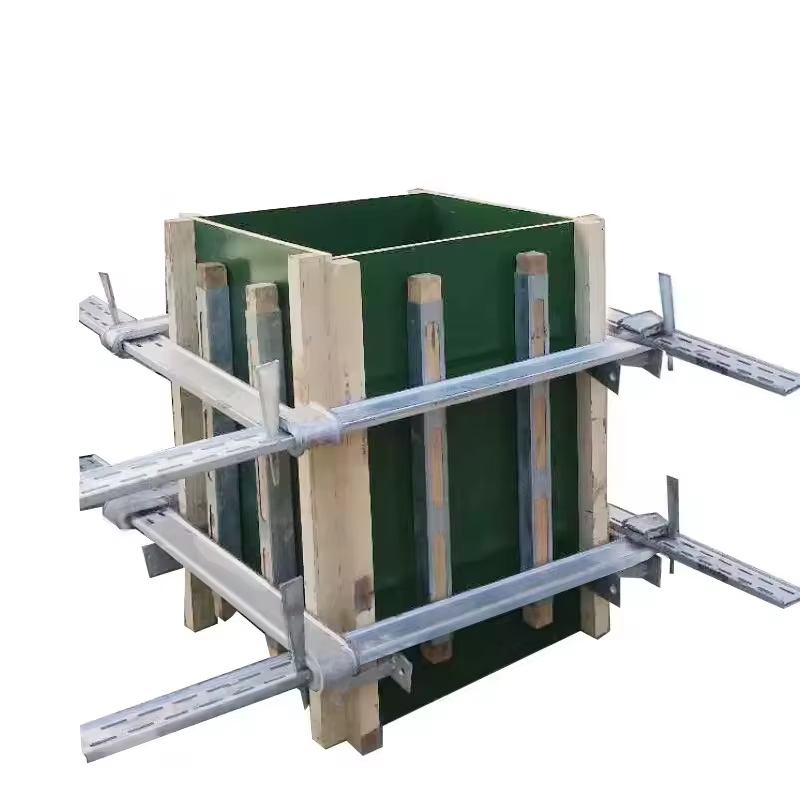

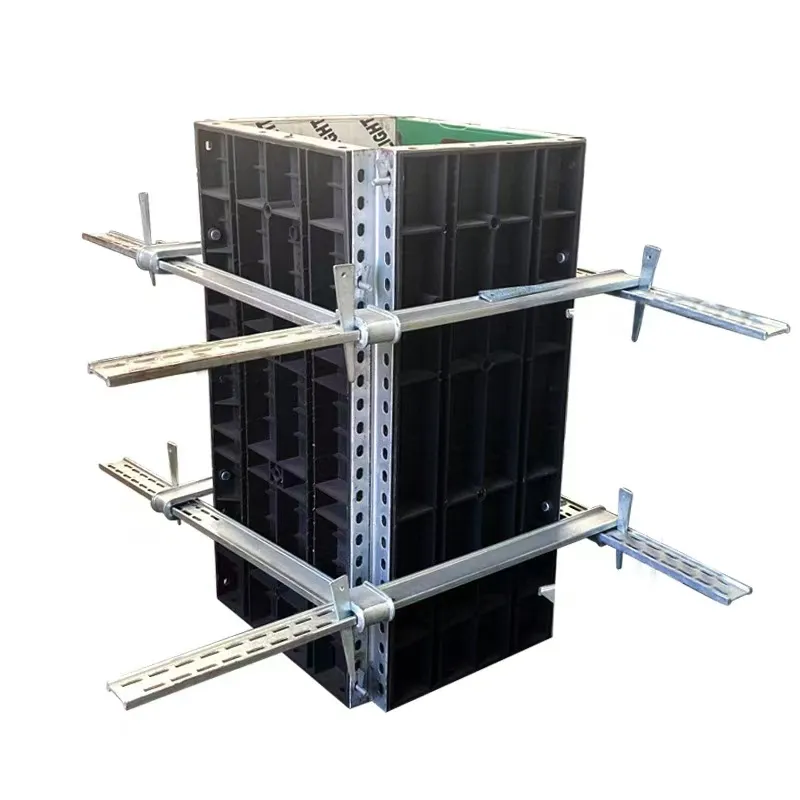

    Introducing the Adjustable Column Clamp – the ultimate solution for your concrete formwork needs! Designed specifically for the construction of concrete columns, our Column Clamp Formwork ensures a secure and efficient clamping mechanism for both steel and timber formwork. With its innovative design, this product is perfect for wall concrete formwork construction, providing a reliable and convenient option for builders and contractors alike.

    The Adjustable Column Clamp is engineered to quickly adjust and secure, allowing for positive clamping of formwork at the corners. This feature not only enhances the stability of your concrete columns but also streamlines the construction process. Say goodbye to the hassle of wall wires within 3 meters of the cylinder; our clamps eliminate the need for wall repair costs, saving you both time and money.

    Versatility is at the heart of our Column Formwork solution. One piece serves multiple purposes, making it flexible enough to accommodate various shapes, including cubes, cuboids, rhombuses, and polygons. Crafted from special high-strength steel, our clamps boast a high reuse rate with minimal accessories required, making them a cost-effective choice for any construction project.

    The cross corner structure of the Adjustable Column Clamp ensures that the molding size is standardized, achieving a building qualification index of over 98%. This means you can trust that your concrete columns will be formed to the highest standards, providing durability and reliability for years to come.

    Upgrade your construction toolkit with our Concrete Columns Clamp and experience the difference in efficiency and quality. Whether you're working on slab and beam formwork or any other concrete project, our Adjustable Column Clamp is the perfect companion for achieving exceptional results. Don’t settle for less – choose the best for your construction needs!

    Product Specification

    column clamp007

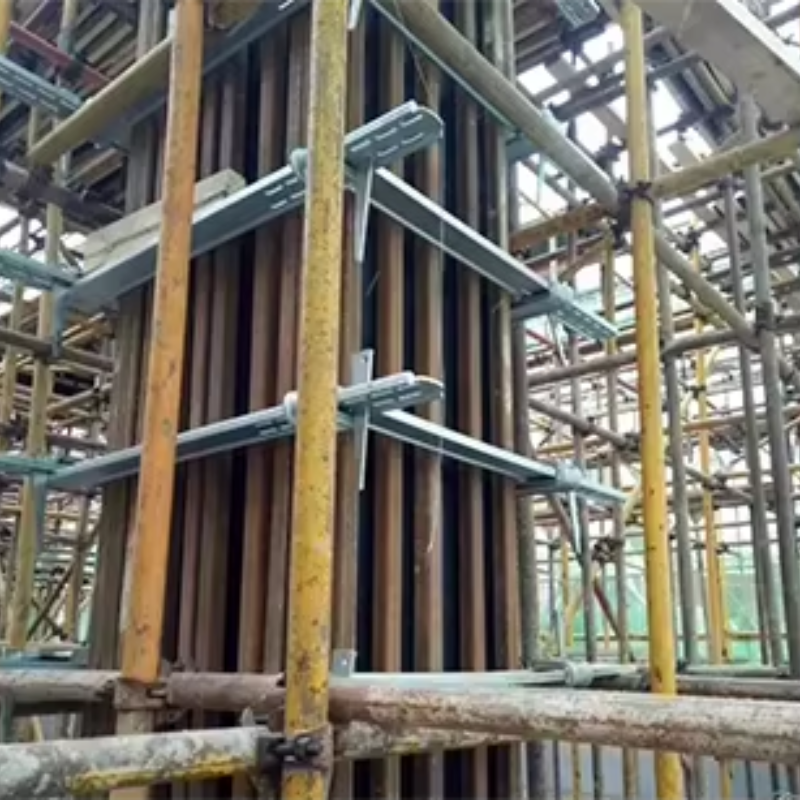

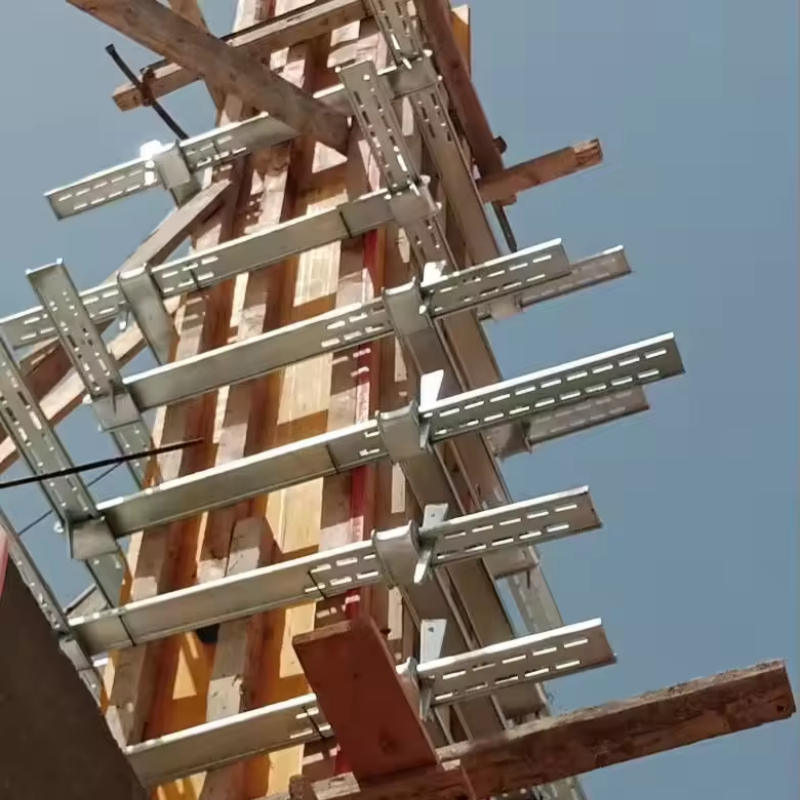

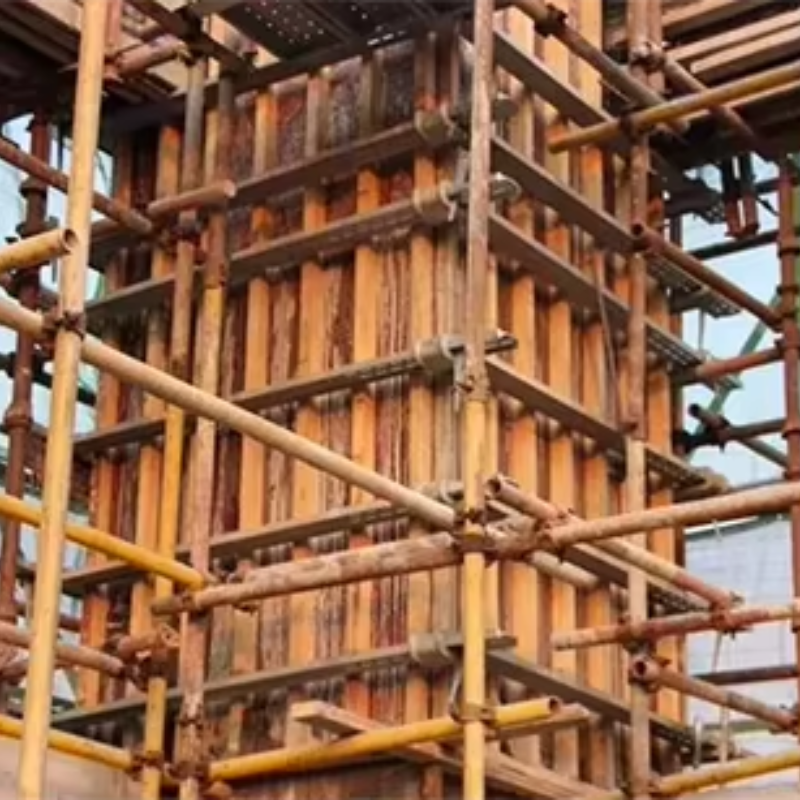

    Applications

    column clamp009
    column clamp010
    column clamp012
    column clamp013
    column clamp011
    column clamp014

    Features

    1. There is no need to use wall wires within 3 meters of the cylinder, no need for wall repair costs, and save the cost of wall wires .
    2. One piece is multi-purpose, flexible to adjust, suitable for different cylinders: cube, cuboid, rhombus, polygon, etc.
    3. Special steel, high strength, few accessories, high reuse rate.
    4. The cross corner structure, the molding size standard, and the building qualification index reach more than 98%.

    Product Display

    column clamp015
    column clamp016

    STEP 1

    Join the 4 piece of panel by slots at edge of panel, fix the corner of column formwork by adjustable corner clamp and keep the clamp the same height.
    column clamp017

    STEP 2

    Put the column clamp on the corner clamp, the head of column clamp is fixed into the bent end of column clamp, make sure the column clamp is faced with beam tightly.
    column clamp018

    STEP 3

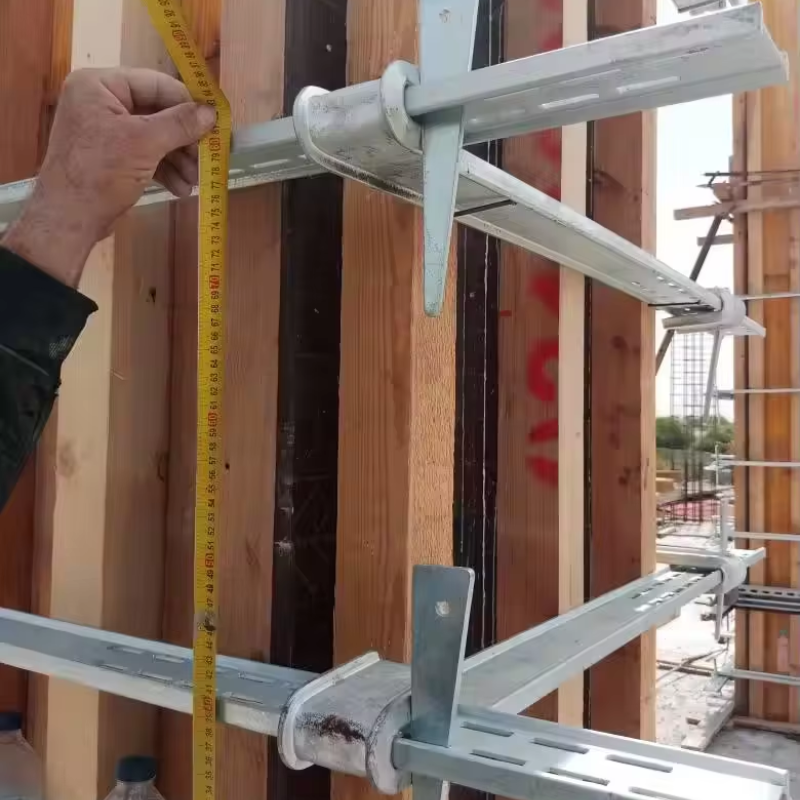

    Put the wedge pin into column clamp, fix it by hammer, measure the distance between column clamp and keep the clamp the same height, install the resting panel and column clamp by the installation steps.
    column clamp019

    STEP 4

    Dismantling Hit the end of wedge pin by hammer, remove the steel plate by hands.

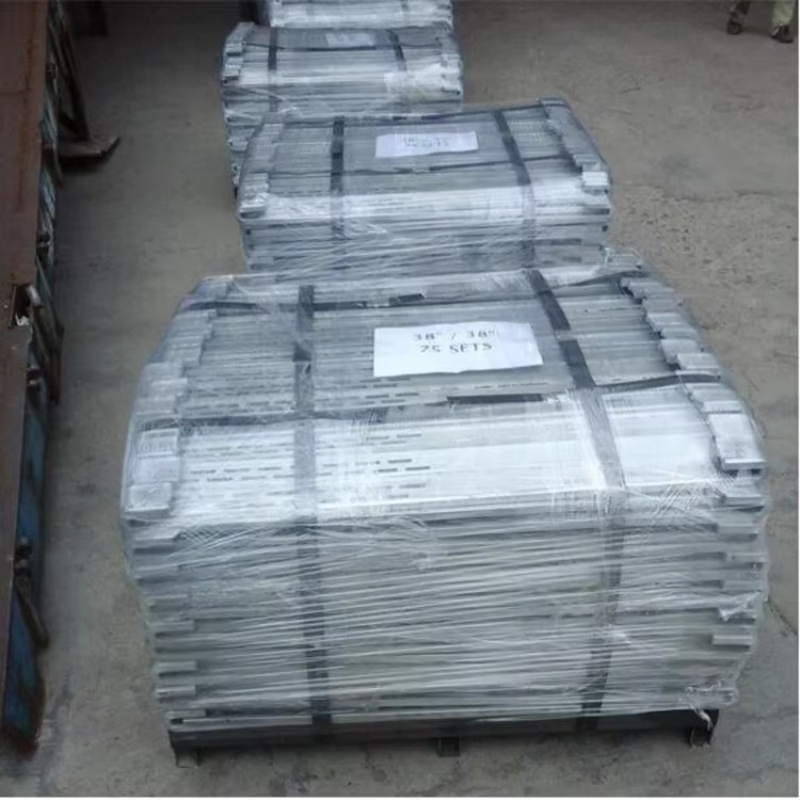

    Packing and loading

    column clamp020
    column clamp021
    column clamp022
    column clamp023
    column clamp024
    column clamp026

    Our Workshop

    spring clamp020

    Company Profile

    formwork-clamp030
    formwork-clamp029
    formwork clamp026

    FAQ

    1. who are we?
    We are based in Tianjin,China,start from 2014,sell to Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Steel Props, Scaffoldings, Scaffolding Accessories, Formwork, Formwork Accessories;
    4. why should you buy from us not from other suppliers?
    High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards;
    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C;
    Language Spoken:English,Chinese
