Construction Formwork Accessories Tie Rod Casting Hex Nut

Short Description:

Formwork tie rod nut is an important part of tie rod system. the hex nut mainly plays fastener role in the process of formwork assembly. The raw material is 45# steel or Ductile casted iron QT450-10, and its manufacturing technique is casting. Other fittings used together maybe: wing nut, anchor nut, water stopper nut, steel cone nut, plate, etc.


  • Product name: Hex Nut
  • Material: Steel
  • Surface treatment: Galvanized Zinc Plated
  • Packing: Woven Bag
  • MOQ: 1000PCS
  • Product Detail

    Product Tags

    company philosophy

    Product Description

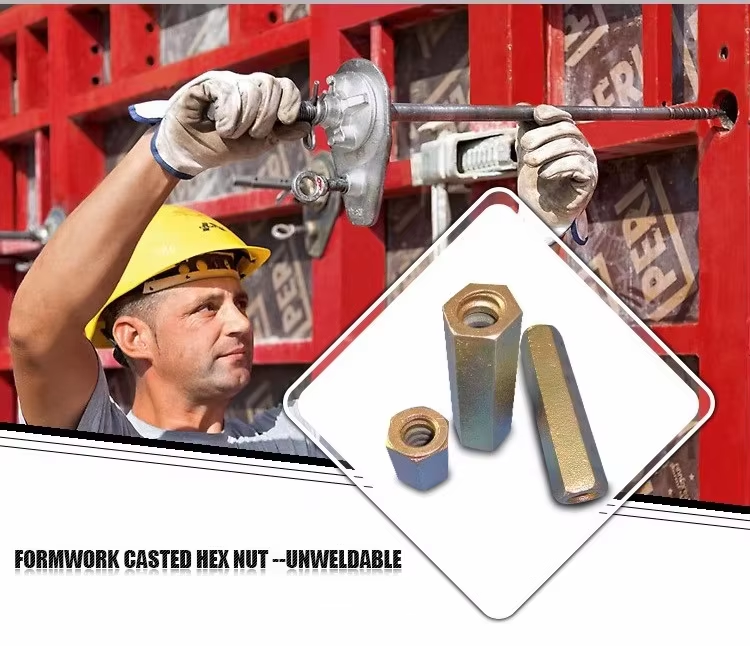

    hex nut 1.0
    Tie Rod Hex Nut001
    Tie Rod Hex Nut014
    Tie Rod Hex Nut015

    Formwork tie rod nut is an important part of tie rod system. the hex nut mainly plays fastener role in the process of formwork assembly. The raw material is 45# steel or Ductile casted iron QT450-10, and its manufacturing technique is casting. Other fittings used together maybe: wing nut, anchor nut, water stopper nut, steel cone nut, plate, etc.

    Tie Rod system accessories are always be an important part in the concrete construction field. Our factory produces various formwork accessories in concrete construction. Traditional manufacturing process, modern production mode make the products quality better and better. Tie rods, anchor nuts, formwork wing nuts, jack nuts, wedge clamps and other accessrories are all in stock. The specific shapes and weight of products can also be customized by customer's needs.

    Texture of material: Select high quality raw materials to ensure product quality.
    Scientific structure: Scientific structure, more durable, better use. Advanced technology: Advanced technology, fast production, guarantee delivery speed.
    After sale guarantee: Professional after-sales team, one-to-one service, more efficient and assured.

    Product Specification

    Tie nut
    types
    Material
    Match
    tie rod
    Weight
    Heat
    treatment
    Surface
    treatment
     Process
     Pull
    Formwork hex nut
    Ductile
    casted iron
    QT450-10
    12/17/
    20MM or customized
    0.19/
    0.34kg,etc.
    depends on customers
    Natural,
    EG,HDG
    Casted
    iron
    150-
    180KN
    Steel formwork hex nut
    45#
    steel
    12/17/
    20MM or customized
    0.19/
    0.34kg,etc.
    depends on customers
    Natural,
    EG,HDG
    Casted iron
    150-
    180KN

    Other Type Wing Nut

    Commodity Photo Size Available Weight Packing
    One Arm Wing Nut Construction Concrete Formwork Tie Rod Casting Tie Nut Wing Nut D15mm Combi Plate Nut D15/17mm 340g Bags or Pallets
    Two Arms Wing Nut Construction Concrete Formwork Tie Rod Casting Tie Nut Wing Nut D15mm Combi Plate Nut D15/17mmD20/22mm 300g620g
    Square Slope Plate Construction Concrete Formwork Tie Rod Casting Tie Nut Wing Nut D15mm Combi Plate Nut D15/17mm 1.0-1.1kgs
    Combi Plate Nut Construction Concrete Formwork Tie Rod Casting Tie Nut Wing Nut D15mm Combi Plate Nut D15/17mm 1.25-1.30kgs
    Hex Nut Construction Concrete Formwork Tie Rod Casting Tie Nut Wing Nut D15mm Combi Plate Nut D15/17mmD20/22mm(other diameter available) 210g-2.6kgs

    Formwork Cold Rolled Tie Rod

    Construction Concrete Formwork Tie Rod Casting Tie Nut Wing Nut D15mm Combi Plate Nut Material Q235, 45#
    Diameter D12mm, D15mm,D20mm
    Weight 0.75kg/meter1.50kg/meter2.36kg/meter
    Surface Treatment Galvanized or As Nature
    Breaking Load 90kn;140;260kn
    Packing Bundles
    Related Products Tie Nut, Wing Nut, Water Stop, Steel Cone, Hex Nut, Connector and etc.

    Applications

    Metal U Clip013
    plywood formwork023
    Metal U Clip012
    plywood formwork015
    plywood formwork001

    Product Display

    Tie Rod Hex Nut009

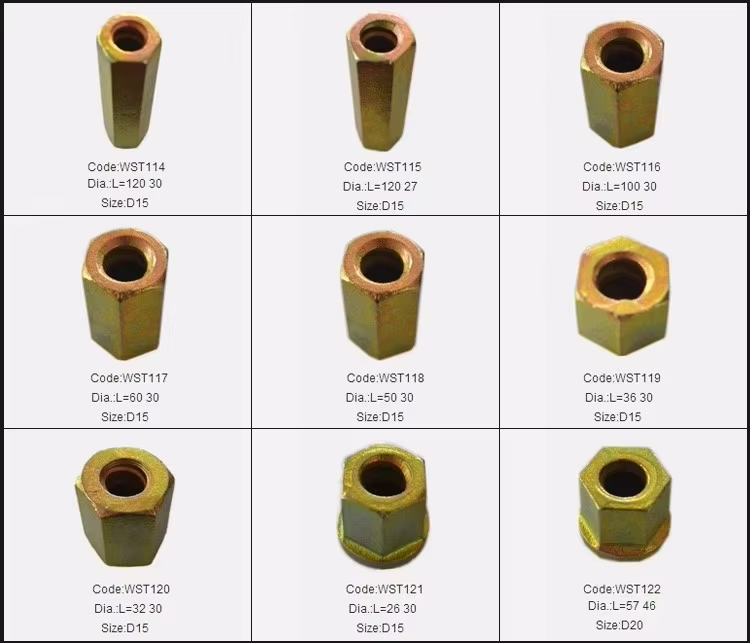

    hex nut1.1
    Tie Rod Hex Nut012
    Tie Rod Hex Nut010

    Product advantages:

    1. Safety, can provide higher case protection.

    2. Quality advantage: The quality of couplers produced by forging technology is superior to other types of products.

    3. Convenient maintenance, forging process is not easy to rust or damage.

    Packing and loading

    spring clamp008

    1.The small bag packaging

    spring clamp009

    2.Pack in a big bag

    spring clamp010

    3.The big package

    spring clamp011

    4.Finally put it in the truck

    Company Profile

    formwork-clamp030
    formwork-clamp029
    formwork clamp026
    why choose us

    FAQ

    1. who are we?
    We are based in Tianjin,China,start from 2014,sell to Oceania(45.00%),Mid East(13.00%),Mid East(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Eastern Asia(8.00%),Central America(6.00%),Southeast Asia(6.00%),South America(6.00%),Central America(6.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Northern Europe(5.00%),Africa(3.00%),Africa(3.00%). There are total about 5-10 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Steel Props, Scaffoldings, Scaffolding Accessories, Formwork, Formwork Accessories;
    4. why should you buy from us not from other suppliers?
    High quality; Competitive price; Short delivery time; Satisfied service; Manufactured according to different standards;
    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C;
    Language Spoken:English,Chinese
