Product Description:

1)Material:Q195,Q235,Q345

2)Surface Treatment:Galvanized,?Paint,?Black mild channel bar.

3)Packing:In bundle, as customer specific requirements

4)Application:modern industrial plant, agricultural greenhouse, animal husbandry factory, stockroom-style supermarket, car showroom, sports venue, quay shed, power plant steel structure, airport facility, construction industry,?automobile industry, solar power station, machine manufacturing, steel pylons, ship bridge, military aft industry, highway construction, machine room equipment container, mineral product holder, etc.

Advantages of Cold Formed Section Steel(C/Z/U steel) :
- Ability to span length -Saving in Steel up to 40%
-Fast to erect and easy handling -No side drilling/cutting required
-Assured dimensions and straightness -Purlin erection is easier than others
-Saving in construction cost up to 30%

-High durability. versatility and uniform quality
- Low transportation cost due to reduced weight
- Close tolerances on sectionaldimensions owing to the process of cold roll forming

-Saving up to 35-40% in weight and 20% in cost when compared to hot rolled purlins

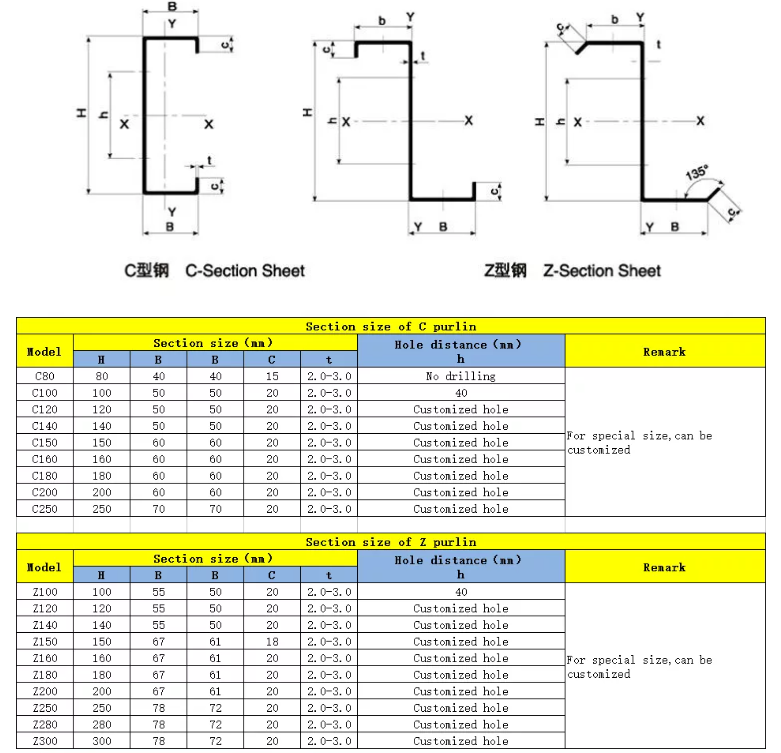

Product Specification:

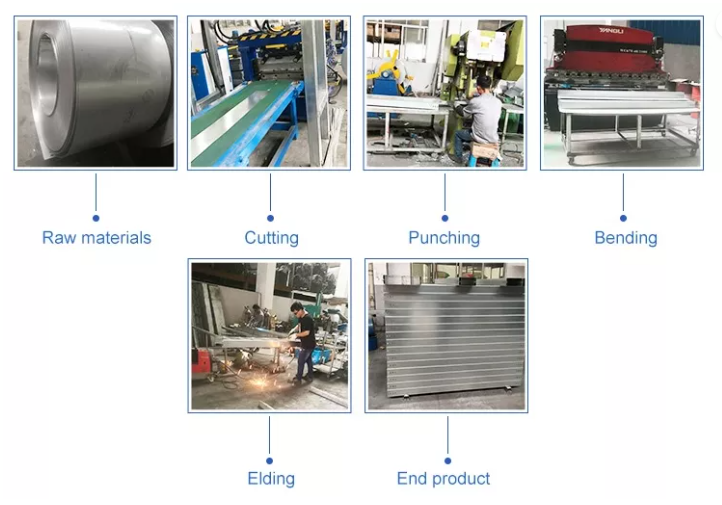

Product Process:

All cold formed steel c profile are shaped by automatic processing by C-steel make-up machine ,which according to given C-steel sizes,can automatically complete C-steel’s forming process.

Feeding-Flattening-Forming-Sizing-Aligning-Length Measurement-Punching Round Hole for Tie-bar -Punching Oval Connection Hole-Molding Cutting-off
