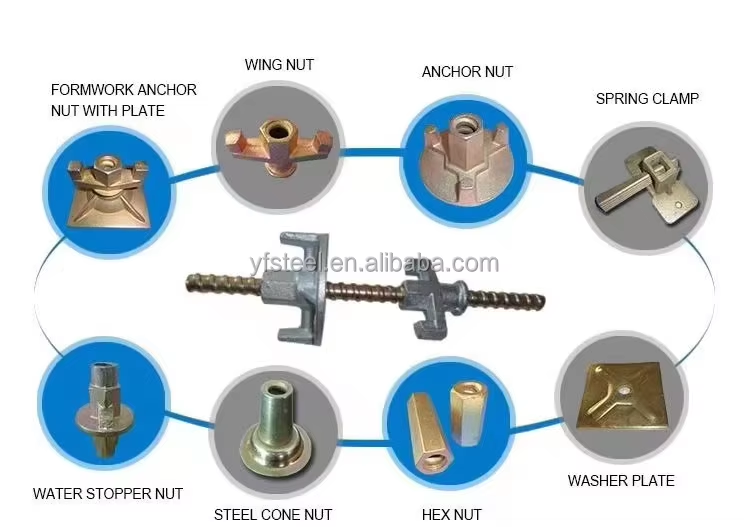

Formwork Wall Tie Rod System is made up of tie rod and tie rod  nut. Tie Rod Nut includes  such tie rod wing nut,formwork anchor nut,water stopper nut.

Formwork Tie Rod Nut is a kind of important accessories in pouring shear wall project. Tie rod nut with the Tie Rod, they act as wall tie system, to fasten the formwork tightly during concrete pouring process. Formwork Tie Rod Nut can also be used in other applications forfasten purpose. Tie Rod are part of formwork wall tie rod system. In the area of scaffolding, these tie rod assemblies find application in bracing steel columns/heavy timber beams and for supporting canopies/awnings. Tie Rod have a cut threading and are available in 1M 3M 6M length or as required.

Flanged Wing Nut/Anchor Nut for Concrete Formwork Shuttering Tie Rod Bar. This is a kind of casted flanged wing nut, with square plate which is used to tight a rebar with diameter of 12/15/17/22mm. The regular outer diameter is 50mm-130mm. By tight the nut along the rebars to clamp the formwork firmly.

Washer Plate Formwork waller plates are made of Q235 steel, they are usually used together with formwork tie rods to protect the formwork system. With various size and weight, our formwork waller plates have different tensile strength and can match tie rods of various sizes. E.g: for 15/17mm tie rod, usually 5mm or 6mm thick is OK; for 20/22mm tie rod, customers prefer 8mm or 10mm thick waller plates.

Water Stopper/ Barrier Nut with disk is widely used as a scaffolding product that plays vital role of stopping water flow efficiently. This range of stopper is sturdily manufactured in distinguished sizes by making use of mild steel.

Formwork accessories tie rod nut is widely considered ideal to use in different domains for fastening applications. This range of tie rod nuts is precisely manufactured by making use of finest quality materials like cast iron, carbon steel and mild steel. These tie rod nuts are widely treasured in this domain for their easy tightening and loosening applicability.
